Raccolta esempi di Service
Di seguito troverai una serie di esempi di Service. Per semplicità forniremo il metamodello in formato JSON. Per maggiori informazioni sulla definizione manuale di questo, visitare:
Es. 1: Input e Output di Tipo Dataset su MinIO
Codice Programma Nucleo
import argparse
def str2bool(v):
if isinstance(v, bool):
return v
if v.lower() in ('yes', 'true', 't', 'y', '1'):
return True
elif v.lower() in ('no', 'false', 'f', 'n', '0', ''):
return False
parser = argparse.ArgumentParser()
parser.add_argument('--input-dataset', dest='input_dataset', type=str, required=True)
parser.add_argument('--input-dataset.minio_bucket', dest='input_minio_bucket', type=str, required=True)
parser.add_argument('--input-dataset.minIO_URL', dest='input_minio_url', type=str, required=True)
parser.add_argument('--input-dataset.minIO_ACCESS_KEY', dest='input_access_key', type=str, required=True)
parser.add_argument('--input-dataset.minIO_SECRET_KEY', dest='input_secret_key', type=str, required=True)
parser.add_argument('--input-dataset.use_ssl', dest='input_use_ssl', type=str2bool, required=True)
parser.add_argument('--input-columns', dest='input_columns', type=str, required=False)
parser.add_argument('--output-dataset', dest='output_dataset', type=str, required=True)
parser.add_argument('--output-dataset.minio_bucket', dest='output_minio_bucket', type=str, required=True)
parser.add_argument('--output-dataset.minIO_URL', dest='output_minio_url', type=str, required=True)
parser.add_argument('--output-dataset.minIO_ACCESS_KEY', dest='output_access_key', type=str, required=True)
parser.add_argument('--output-dataset.minIO_SECRET_KEY', dest='output_secret_key', type=str, required=True)
parser.add_argument('--output-dataset.use_ssl', dest='output_use_ssl', type=str2bool, required=True)
args, unknown = parser.parse_known_args()
def minio_ls(address, access_key, secret_key, bucket_name, folder, extention, use_ssl=False):
# Normalize path
if folder.startswith("/"):
folder = folder[1:]
if folder[-1] != "/":
folder = folder + "/"
cleaned = address.replace("http://", "").replace("https://", "")
client = Minio(
cleaned,
access_key=access_key,
secret_key=secret_key,
secure=use_ssl
)
objects = client.list_objects(bucket_name=bucket_name, prefix=folder)
files_list = [x._object_name for x in objects if extention in x._object_name[-len(extention):]]
if len(files_list) > 1:
return ["s3://" + bucket_name + "/" + x for x in files_list]
elif len(files_list) == 1:
return "s3://" + bucket_name + "/" + files_list[0]
else:
raise Exception("Dataset is empty!")
def select_columns(df, colonne: str =None):
if colonne is None or colonne.strip()=='*':
return df
else:
selected_columns = colonne.split(',')
for colonne_b in selected_columns:
colonne_a = colonne_b.strip()
selected_columns[selected_columns.index(colonne_b)] = colonne_a
return df[selected_columns]
def load_from_minio(args):
storage_options = {
'key': args.input_access_key,
'secret': args.input_secret_key,
'client_kwargs': {
'endpoint_url': args.input_minio_url
}
}
file_path = minio_ls(args.input_minio_url, args.input_access_key, args.input_secret_key, args.input_minio_bucket,
args.input_dataset, ".csv", args.input_use_ssl)
dataset = pd.read_csv(file_path, storage_options=storage_options, sep=None, engine='python')
data_out = select_columns(dataset, colonne=args.input_columns)
return data_out
df = load_from_minio(args)
def save_dataset_to_minio(df,args):
storage_options = {
'key': args.output_access_key,
'secret': args.output_secret_key,
'client_kwargs': {
'endpoint_url': args.output_minio_url
}
}
file_path = f"s3://{args.output_minio_bucket}/{args.output_dataset}/output-dataset.csv"
print(f"[TO_CSV] path={file_path} endpoint={args.output_minio_url} bucket={args.output_minio_bucket}")
df.to_csv(file_path,
storage_options=storage_options,
index=False
)
save_dataset_to_minio(df,args)
Metamodel
{
"name": "example",
"description": "example of input and output data",
"mode": "BATCH",
"url": "docker://gitlab.alidalab.it:5000/alida/analytics/python-applications/example:1.0.0",
"version": "1.0.0",
"accessLevel": "PUBLIC",
"properties": [
{
"description": "Your input dataset",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-dataset",
"valueType": "STRING",
"invisible": true
},
{
"defaultValue": "ANY",
"description": "Selected columns from table",
"key": "input-columns",
"type": "application",
"mandatory": true,
"valueType": "STRING",
"invisible": true
},
{
"description": "Your output dataset",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "output-dataset",
"valueType": "STRING",
"invisible": true
}
]
}
Es. 2: Input e Output di Tipo Stream su Kafka
Codice Programma Nucleo
import argparse
from kafka import KafkaConsumer, KafkaProducer
from arguments import args
# CLI Arguments definition
parser = argparse.ArgumentParser()
parser.add_argument('--input-dataset', dest='input_topic', type=str, required=True)
parser.add_argument('--input-dataset.kafka_brokers', dest='input_kafka_brokers', type=str, required=True)
parser.add_argument('--output-dataset', dest='output_topic', type=str, required=True)
parser.add_argument('--output-dataset.kafka_brokers', dest='output_kafka_brokers', type=str, required=True)
args, unknown = parser.parse_known_args()
# Business logic
consumer = KafkaConsumer(
args.input_topic,
bootstrap_servers=args.input_kafka_brokers.split(",")
)
producer = KafkaProducer(
bootstrap_servers=args.output_kafka_brokers.split(",")
)
def _transform_data(input_data):
# Here the service logic has to be implemented
return input_data
for message in consumer:
# Once we get a message, publish it transformed.
data_to_send = _transform_data(message.value)
producer.send(args.output_topic, data_to_send)
Metamodel
{
"name": "consume-and-publish",
"description": "Consume and publish example",
"mode": "BATCH",
"url": "docker://gitlab.alidalab.it:5000/alida/analytics/python-applications/consume-and-publish:1.0.0",
"version": "1.0.0",
"accessLevel": "PUBLIC",
"properties": [
{
"defaultValue": null,
"description": "The input channel where to read the text.",
"extra": {
"datasetType": null,
"mode": "streaming"
},
"invisible": true,
"key": "input-dataset",
"mandatory": true,
"type": "application",
"valueType": "STRING"
},
{
"defaultValue": null,
"description": "The output channel to publish to.",
"extra": {
"datasetType": null,
"mode": "streaming"
},
"invisible": true,
"key": "output-dataset",
"mandatory": true,
"type": "application",
"valueType": "STRING"
}
]
}
Es. 3: Input Dataset e Output Model su MinIO
Codice Programma Nucleo
import argparse
from sklearn.model_selection import train_test_split
from sklearn.cluster import KMeans
import joblib
import os
from minio import Minio
def str2bool(v):
if isinstance(v, bool):
return v
if v.lower() in ('yes', 'true', 't', 'y', '1'):
return True
elif v.lower() in ('no', 'false', 'f', 'n', '0', ''):
return False
parser = argparse.ArgumentParser()
parser.add_argument('--input-dataset', dest='input_dataset', type=str, required=True)
parser.add_argument('--input-dataset.minio_bucket', dest='input_minio_bucket', type=str, required=True)
parser.add_argument('--input-dataset.minIO_URL', dest='input_minio_url', type=str, required=True)
parser.add_argument('--input-dataset.minIO_ACCESS_KEY', dest='input_access_key', type=str, required=True)
parser.add_argument('--input-dataset.minIO_SECRET_KEY', dest='input_secret_key', type=str, required=True)
parser.add_argument('--input-dataset.use_ssl', dest='input_use_ssl', type=str2bool, required=True)
parser.add_argument('--input-columns', dest='input_columns', type=str, required=False)
parser.add_argument('--output-model', dest='output_model', type=str, required=True)
parser.add_argument('--output-model.minio_bucket', dest='output_minio_bucket', type=str, required=True)
parser.add_argument('--output-model.minIO_URL', dest='output_minio_url', type=str, required=True)
parser.add_argument('--output-model.minIO_ACCESS_KEY', dest='output_access_key', type=str, required=True)
parser.add_argument('--output-model.minIO_SECRET_KEY', dest='output_secret_key', type=str, required=True)
parser.add_argument('--output-model.use_ssl', dest='output_use_ssl', type=str2bool, required=True)
parser.add_argument("--test_split", help="Test fraction from 0 to 1.", type=float, default=0.2)
args, unknown = parser.parse_known_args()
def minio_ls(address, access_key, secret_key, bucket_name, folder, extention, use_ssl=False):
if folder.startswith("/"):
folder = folder[1:]
if folder[-1] != "/":
folder = folder + "/"
cleaned=address.replace("http://", "").replace("https://", "")
client = Minio(
cleaned,
access_key=access_key,
secret_key=secret_key,
secure=use_ssl
)
objects = client.list_objects(bucket_name=bucket_name, prefix=folder)
files_list = [x._object_name for x in objects if extention in x._object_name[-len(extention):]]
if len(files_list) > 1:
return ["s3://" + bucket_name + "/" + x for x in files_list]
elif len(files_list) == 1:
return "s3://" + bucket_name + "/" + files_list[0]
else:
raise Exception("Dataset is empty!")
def upload_file_to_minio(minio_url, access_key, secret_key, bucket_name, object_name, local_file_path, use_ssl=False):
# Initialize the MinIO client
address = minio_url.replace("http://", "").replace("https://", "")
client = Minio(address, access_key=access_key, secret_key=secret_key, secure=use_ssl)
# Upload the file
client.fput_object(bucket_name, object_name, local_file_path)
# Load the input dataset
storage_options = {
'key': args.input_access_key,
'secret': args.input_secret_key,
'client_kwargs': {
'endpoint_url': f'{args.input_minio_url}'
}
}
file_path = minio_ls(args.input_minio_url, args.input_access_key, args.input_secret_key, args.input_minio_bucket, args.input_dataset, ".csv")
dataset = pd.read_csv(file_path, storage_options=storage_options, sep = None, engine = 'python')
if args.input_columns is not None and args.input_columns.strip()!='*':
selected_columns = [c.strip() for c in args.input_columns.split(",")]
df=dataset[selected_columns]
else:
df = dataset.copy()
# Split the dataset into training and testing sets
# Only the training set is used here
df = train_test_split(df, test_size=args.test_split, random_state=42)[0]
# Extract the feature matrix from the dataframe
X = df.values
# Initialize and train a KMeans clustering model
kmeans = KMeans(n_clusters=3, random_state=42)
kmeans.fit(X)
# Save the trained model locally as a .pkl file
model_folder = "mymodel"
os.makedirs(model_folder, exist_ok=True)
model_local_path = os.path.join(model_folder,"kmeans_model.pkl")
joblib.dump(kmeans, model_local_path)
# Upload to minIo
upload_file_to_minio(args.output_minio_url, args.output_access_key, args.output_secret_key, args.output_minio_bucket, args.output_model, model_local_path, args.output_use_ssl)
Metamodel
{
"name": "kmeans-clustering",
"description": "Kmeans clustering model",
"mode": "BATCH",
"url": "docker://gitlab.alidalab.it:5000/alida/analytics/python-applications/kmeans-clustering:1.0.0",
"version": "1.0.0",
"accessLevel": "PUBLIC",
"properties": [
{
"description": "Your input dataset description.",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-dataset",
"valueType": "STRING"
"invisible": true
},
{
"defaultValue": "ANY",
"description": "Selected columns from table",
"key": "input-columns",
"type": "application",
"mandatory": true,
"valueType": "STRING"
"invisible": true
},
{
"description": "Your model description",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "output-model",
"valueType": "STRING"
"invisible": true
},
{
"description": "Test fraction from 0 to 1",
"mandatory": true,
"type": "application",
"defaultValue": 0.2,
"key": "test_split",
"valueType": "DOUBLE"
}
]
}
Es. 4: Input Dataset + Input Model + Output Model
Codice Programma Nucleo
import argparse
import pandas as pd
from arguments import args
from joblib import load
parser = argparse.ArgumentParser()
parser.add_argument('--input-dataset', dest='input_dataset', type=str, required=True)
parser.add_argument('--input-dataset.minio_bucket', dest='input_dataset_minio_bucket', type=str, required=True)
parser.add_argument('--input-dataset.minIO_URL', dest='input_dataset_minio_url', type=str, required=True)
parser.add_argument('--input-dataset.minIO_ACCESS_KEY', dest='input_dataset_access_key', type=str, required=True)
parser.add_argument('--input-dataset.minIO_SECRET_KEY', dest='input_dataset_secret_key', type=str, required=True)
parser.add_argument('--input-model', dest='input_model', type=str, required=True)
parser.add_argument('--input-model.minio_bucket', dest='input_model_minio_bucket', type=str, required=True)
parser.add_argument('--input-model.minIO_URL', dest='input_model_minio_url', type=str, required=True)
parser.add_argument('--input-model.minIO_ACCESS_KEY', dest='input_model_access_key', type=str, required=True)
parser.add_argument('--input-model.minIO_SECRET_KEY', dest='input_model_secret_key', type=str, required=True)
parser.add_argument('--output-dataset', dest='output_dataset', type=str, required=True)
parser.add_argument('--output-dataset.minio_bucket', dest='output_minio_bucket', type=str, required=True)
parser.add_argument('--output-dataset.minIO_URL', dest='output_minio_url', type=str, required=True)
parser.add_argument('--output-dataset.minIO_ACCESS_KEY', dest='output_access_key', type=str, required=True)
parser.add_argument('--output-dataset.minIO_SECRET_KEY', dest='output_secret_key', type=str, required=True)
parser.add_argument("--predColName", dest='predColName'. help="Name of the column containing the predictions", type=str, default="prediction")
args, unknown = parser.parse_known_args()
def minio_ls(address, access_key, secret_key, bucket_name, folder, extention, use_ssl=False):
if folder[-1] != "/":
folder = folder + "/"
client = Minio(
address,
access_key=access_key,
secret_key=secret_key,
secure=use_ssl
)
objects = client.list_objects(bucket_name=bucket_name, prefix=folder)
files_list = [x._object_name for x in objects if extention in x._object_name[-len(extention):]]
if len(files_list) > 1:
return ["s3://" + bucket_name + "/" + x for x in files_list]
elif len(files_list) == 1:
return "s3://" + bucket_name + "/" + files_list[0]
else:
raise Exception("Dataset is empty!")
def load_first_from_minio(address, access_key, secret_key, bucket_name, folder, extention, use_ssl=False):
if folder[-1] != "/":
folder = folder + "/"
client = Minio(
address,
access_key=access_key,
secret_key=secret_key,
secure=use_ssl
)
objects = client.list_objects(bucket_name=bucket_name, prefix=folder)
# Find the first model file
model_file = next((obj for obj in objects if obj._object_name.endswith(extention)), None)
# Get the filename from the object name
filename = os.path.basename(model_file.object_name)
local_file_path = filename
# Download the file
client.fget_object(bucket_name, model_file.object_name, local_file_path)
return local_file_path
def upload_file_to_minio(minio_url, access_key, secret_key, bucket_name, object_name, local_file_path):
# Initialize the MinIO client
client = Minio(minio_url, access_key=access_key, secret_key=secret_key, secure=False)
# Upload the file
client.fput_object(bucket_name, object_name, local_file_path)
def predict():
model_path = load_first_from_minio(args.input_model_minio_url, args.input_model_access_key, args.input_model_secret_key, args.input_model_minio_bucket, args.input_model, ".joblib")
knn = load(model_path)
storage_options = {
'key': args.input_dataset_access_key,
'secret': args.input_dataset_secret_key,
'client_kwargs': {
'endpoint_url': f'{args.input_minio_url}'
}
}
file_path = minio_ls(args.input_dataset_minio_url, args.input_dataset_access_key, args.input_dataset_secret_key, args.input_dataset_minio_bucket, args.input_dataset, ".csv")
dataset = pd.read_csv(file_path, storage_options=storage_options, sep = None, engine = 'python')
colonne = args.input_columns
if colonne is not None and colonne.strip()!='*':
df_selected = dataset[c.strip() for c in colonne.split(",")]
dataset = df_selected.copy()
result = knn.predict(dataset)
result = pd.DataFrame(result, columns = [args.predColName])
dataset[args.predColName] = result[args.predColName]
return dataset
df = predict()
storage_options = {
'key': args.output_access_key,
'secret': args.output_secret_key,
'client_kwargs': {
'endpoint_url': f'{args.output_minio_url}'
}
}
file_path = f"s3://{args.output_minio_bucket}/{args.output_dataset}/dataset.csv"
df.to_csv(file_path,
storage_options=storage_options,
index=False
)
Metamodel
{
"name": "knn-predict",
"description": "Knn prediction model",
"mode": "BATCH",
"url": "docker://gitlab.alidalab.it:5000/alida/analytics/python-applications/knn-predict:1.0.0",
"version": "1.0.0",
"accessLevel": "PUBLIC",
"properties": [
{
"description": "Your input dataset description.",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-dataset",
"valueType": "STRING",
"invisible": true
},
{
"defaultValue": "ANY",
"description": "Selected columns from table",
"key": "input-columns",
"type": "application",
"mandatory": true,
"valueType": "STRING",
"invisible": true
},
{
"description": "Your input model description",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-model",
"valueType": "STRING",
"invisible": true
},
{
"description": "Your output dataset",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "output-dataset",
"valueType": "STRING",
"invisible": true
},
{
"description": "Name of the column containing the predictions",
"mandatory": true,
"type": "application",
"defaultValue": "prediction",
"key": "predColName",
"valueType": "STRING"
}
]
}
Es. 5: Prediction Input Stream + Input Model + Output Stream
Codice Programma Nucleo
import argparse
import os
from pathlib import Path
import dill
import joblib
import pickle
import numpy as np
import pandas as pd
from alibi.explainers import AnchorTabular
parser = argparse.ArgumentParser()
parser.add_argument('--input-dataset', dest='input_topic', type=str, required=True)
parser.add_argument('--input-dataset.kafka_brokers', dest='input_kafka_brokers', type=str, required=True)
parser.add_argument('--output-dataset', dest='output_topic', type=str, required=True)
parser.add_argument('--output-dataset.kafka_brokers', dest='output_kafka_brokers', type=str, required=True)
parser.add_argument('--input-model', dest='input_model', type=str, required=True)
parser.add_argument('--input-model.minio_bucket', dest='input_model_minio_bucket', type=str, required=True)
parser.add_argument('--input-model.minIO_URL', dest='input_model_minio_url', type=str, required=True)
parser.add_argument('--input-model.minIO_ACCESS_KEY', dest='input_model_access_key', type=str, required=True)
parser.add_argument('--input-model.minIO_SECRET_KEY', dest='input_model_secret_key', type=str, required=True)
parser.add_argument("--feature_to_predict", dest='feature_to_predict', help="These arguments will be injected directly into the explain method of the Anchor Tabular explainer.", required=False, type=str)
parser.add_argument("--direct_args_to_explainer_function", dest='direct_args_to_explainer_function', help="This args are going to be injected to the KNeighborsClassifier.fit function directly", type=str, default='{"n_neighbors":3}')
args, unknown = parser.parse_known_args()
def load_first_from_minio(address, access_key, secret_key, bucket_name, folder, use_ssl=False):
if folder[-1] != "/":
folder = folder + "/"
client = Minio(
address,
access_key=access_key,
secret_key=secret_key,
secure=use_ssl
)
objects = client.list_objects(bucket_name=bucket_name, prefix=folder)
# Find the first model file
model_file = next((obj for obj in objects if (obj.object_name.endswith(".joblib") or obj.object_name.endswith(".sav") or obj.object_name.endswith(".pkl"))), None)
# Get the filename from the object name
filename = os.path.basename(model_file.object_name)
local_file_path = filename
# Download the file
client.fget_object(bucket_name, model_file.object_name, local_file_path)
return local_file_path
def find_folder(parent_path, folder_name):
"""
Recursively searches for a folder with the specified name inside the given parent directory.
Only directories (not files) are considered.
:param parent_path: Path to the root directory where the search should begin.
:param folder_name: Name of the folder to find.
:return: Full path to the found folder.
:raises FileNotFoundError: If the folder is not found under the given path.
"""
if not os.path.exists(parent_path):
raise FileNotFoundError(f"The directory '{parent_path}' does not exist.")
if not os.path.isdir(parent_path):
raise NotADirectoryError(f"The path '{parent_path}' is not a directory.")
for root, dirs, _ in os.walk(parent_path):
if folder_name in dirs:
return os.path.join(root, folder_name)
def download_folder_from_minio(endpoint, access_key, secret_key, bucket, path, destination, secure=False):
cleaned = endpoint.replace("http://", "").replace("https://", "")
client = Minio(
cleaned,
access_key=access_key,
secret_key=secret_key,
secure=secure
)
# Normalizza
if path.startswith("/"):
path = path[1:]
if path and not path.endswith("/"):
path += "/"
objects = client.list_objects(bucket, prefix=path, recursive=True)
found = False
for obj in objects:
found = True
rel_path = obj.object_name[len(path):].lstrip("/")
local_path = os.path.join(destination, rel_path)
os.makedirs(os.path.dirname(local_path), exist_ok=True)
client.fget_object(bucket, obj.object_name, local_path)
print(f"Downloaded {obj.object_name} -> {local_path}", flush=True)
if not found:
print(f"Nessun file trovato in {bucket}/{path}", flush=True)
def build_predict_fn(model):
if not hasattr(model, 'predict'):
raise AttributeError("The provided model does not have a 'predict' method.")
if hasattr(model, 'feature_names_in_'):
return lambda x: model.predict(pd.DataFrame(x, columns=model.feature_names_in_.tolist()))
else:
print('motore addestrato senza features', flush=True)
return lambda x: model.predict(x)
def load_anchor_explainer(explainer_folder_path: str) -> AnchorTabular:
"""
Carica un AnchorTabular explainer salvato con dill da una cartella specifica,
includendo anche il ripristino del sampler.
:param explainer_folder_path: path alla cartella /output_model/explainer_model
:return: istanza di AnchorTabular già fitata e completa
"""
explainer_file = Path(explainer_folder_path) / 'explainer.dill'
sampler_file = Path(explainer_folder_path) / 'samplers.dill'
discretizer_file = Path(explainer_folder_path) / 'discretizer.dill'
if not explainer_file.exists():
raise FileNotFoundError(f"Explainer file not found at {explainer_file}")
with open(explainer_file, 'rb') as f:
explainer: AnchorTabular = dill.load(f)
# Ripristino dei samplers separatamente
if discretizer_file.exists():
if sampler_file.exists():
with open(discretizer_file, 'rb') as f:
discretizer = dill.load(f)
with open(sampler_file, 'rb') as f:
samplers = dill.load(f)
samplers.disc = discretizer
explainer.samplers = [samplers]
print("✅ Samplers ricaricati correttamente dall'explainer.", flush=True)
else:
print("⚠ Attenzione: samplers.dill non trovato. L'explainer potrebbe non funzionare correttamente.", flush=True)
return explainer
def extract_imputer_values_from_explainer(explainer) -> dict:
"""
Estrae un dizionario unico {feature_name: fill_value} coerente con il training.
- Valore centrale di qts per feature numeriche (dal Discretizer)
- Primo valore disponibile per categoriche (da feature_values)
Returns:
Dict[str, Any]: mapping {column_name: fill_value}
"""
sampler = explainer.samplers[0]
discretizer = sampler.disc
feature_names = explainer.feature_names
fill_values = {}
# Valore centrale (approssimazione della mediana) per numeriche
for i in explainer.numerical_features:
if i in discretizer.lambdas and 'qts' in discretizer.lambdas[i].keywords:
qts = discretizer.lambdas[i].keywords['qts']
if len(qts) > 0:
fill_values[feature_names[i]] = qts[len(qts) // 2]
# Primo valore noto per categoriche
for i in sampler.categorical_features:
if i in sampler.feature_values and len(sampler.feature_values[i]) > 0:
fill_values[feature_names[i]] = sampler.feature_values[i][0]
return fill_values
def get_anchors_results_with_prediction(sample_to_explain, fitted_anchors: AnchorTabular, explain_kwargs, target_class: str):
try:
encoded_instance = encode_categorical_features(sample_to_explain, fitted_anchors)
explanation = fitted_anchors.explain(encoded_instance,**explain_kwargs)
anch_explanation = explanation['data']
except Exception as e:
print('While getting anchors results, an error occured:', flush=True)
print(e, flush=True)
anch_explanation = None
try:
prediction = fitted_anchors.predictor(sample_to_explain.reshape(1,-1))[0]
except Exception as e:
print('While getting prediction, an error occured:', flush=True)
print(e, flush=True)
prediction = None
anchor_text = ' AND '.join(anch_explanation.get('anchor', [])) if anch_explanation else ''
return {
'name': target_class,
'value': str(prediction),
'explanation': anchor_text
}
import pandas as pd
from arguments import args
import pickle
import joblib
from utils import load_first_from_minio, minio_ls
from utils import *
from kafka import KafkaConsumer, KafkaProducer
model_path_str = load_first_from_minio(args.input_model_minio_url, args.input_model_access_key, args.input_model_secret_key, args.input_model_minio_bucket, args.input_model, ".joblib")
model_to_explain = None
try:
model_to_explain = joblib.load(model_path_str)
except Exception:
try:
with open(model_to_explain, "rb") as f:
model_to_explain = pickle.load(f)
except Exception as e:
raise RuntimeError(f"Failed to load model {model_path_str}: {e}")
try:
features_name_for_model = model_to_explain.feature_names_in_.tolist()
except AttributeError:
features_name_for_model = None
predict_fn = build_predict_fn(model_to_explain)
explainer_remote_path = '.resources/input_model'
os.makedirs(explainer_remote_path, exist_ok=True)
download_folder_from_minio(args.input_model_minio_url, args.input_model_access_key, args.input_model_secret_key, args.input_model_minio_bucket, args.input_model, explainer_remote_path, secure=False)
explainer_path = find_folder(explainer_remote_path, 'explainer_model')
explainer = load_anchor_explainer(explainer_path)
# Verificare se è ancora necessario questo passaggio
explainer.reset_predictor(predict_fn)
# Carico le informazioni per imputare i valori mancanti coerentemente all'explainer
impute_dict = extract_imputer_values_from_explainer(explainer)
direct_args_to_explainer_function = json.loads(args.direct_args_to_explainer_function)
if direct_args_to_explainer_function is None: direct_args_to_explainer_function = {}
if 'threshold' not in direct_args_to_explainer_function: direct_args_to_explainer_function['threshold'] = 0.7
if args.feature_to_predict is None: args.feature_to_predict = 'predicted_label'
consumer = KafkaConsumer(
args.input_topic,
bootstrap_servers=args.input_kafka_brokers.split(",")
)
producer = KafkaProducer(
bootstrap_servers=args.output_kafka_brokers.split(",")
)
for message in consumer.read_message():
if isinstance(message, dict):
records = [message]
elif isinstance(message, list) and all(isinstance(el, dict) for el in message):
records = message
else:
print("⚠ Messaggio non valido (né dict né lista di dict), ignorato.")
continue
df_input = pd.DataFrame(records)
# Imposta il valore nullo per feature non arrivate nel messaggio ma necessarie per il modello
if features_name_for_model is not None:
missing_features = [col for col in features_name_for_model if col not in df_input.columns]
for col in missing_features:
df_input[col] = np.nan
df_input = df_input[features_name_for_model]
# imputazione valori mancanti
df_input.fillna(impute_dict, inplace=True)
# Iterazione riga per riga per prediction + explanation
for (i), row in df_input.iterrows():
input_array = row.to_numpy(dtype=object)
try:
anchor_explain_dict = get_anchors_results_with_prediction(
sample_to_explain=input_array,
fitted_anchors=explainer,
explain_kwargs=args.direct_args_to_explainer_function,
target_class=args.feature_to_predict
)
# Inserimento in record originale SENZA toccare altre chiavi
record = records[i]
record.setdefault('predictions', []).append(anchor_explain_dict)
except Exception as e:
print('Error of elaboration messages:', flush=True)
print(e, flush=True)
producer.send(args.output_topic, records)
Metamodel
{
"accessLevel": "PUBLIC",
"description": "Anchors explainer for tabular data",
"mode": "BATCH",
"name": "anchors-tabular-predict",
"properties": [
{
"defaultValue": null,
"description": "The feature to predict. Use for multiple pretiction",
"invisible": false,
"key": "feature_to_predict",
"mandatory": false,
"type": "application",
"valueType": "STRING"
},
{
"defaultValue": null,
"description": "These arguments will be injected directly into the explain method of the Anchor Tabular explainer.",
"invisible": false,
"key": "direct_args_to_explainer_function",
"mandatory": false,
"type": "application",
"valueType": "JSON"
},
{
"defaultValue": null,
"description": "Your input model description.",
"inputData": false,
"invisible": true,
"key": "input-model",
"mandatory": true,
"type": "application",
"valueType": "STRING"
},
{
"defaultValue": null,
"description": "Data with prediction and explanations",
"extra": {
"datasetType": null,
"mode": "streaming"
},
"invisible": true,
"key": "output-dataset",
"mandatory": true,
"type": "application",
"valueType": "STRING"
},
{
"defaultValue": null,
"description": "Data to be explained.",
"extra": {
"datasetType": null,
"mode": "streaming"
},
"invisible": true,
"key": "input-dataset",
"mandatory": true,
"type": "application",
"valueType": "STRING"
}
],
"url": "docker://dockerhub.alidalab.it/alida/restricted/services/anchors-tabular-predict:1.1.0",
"version": "1.1.0"
}
Es. 6: Input Dataset Multipli + Output Dataset Multiple
Codice Programma Nucleo
import argparse
from minio import Minio
from arguments import args
from utils import upload_dataset, fetch_dataset
import pandas as pd
parser = argparse.ArgumentParser()
parser.add_argument('--input-dataset-1', dest='input_dataset_1', type=str, required=True)
parser.add_argument('--input-dataset-1.minio_bucket', dest='input_dataset_1_minio_bucket', type=str, required=True)
parser.add_argument('--input-dataset-1.minIO_URL', dest='input_dataset_1_minio_url', type=str, required=True)
parser.add_argument('--input-dataset-1.minIO_ACCESS_KEY', dest='input_dataset_1_access_key', type=str, required=True)
parser.add_argument('--input-dataset-1.minIO_SECRET_KEY', dest='input_dataset_1_secret_key', type=str, required=True)
parser.add_argument('--output-dataset-1', dest='output_dataset_1_dataset', type=str, required=True)
parser.add_argument('--output-dataset-1.minio_bucket', dest='output_dataset_1_minio_bucket', type=str, required=True)
parser.add_argument('--output-dataset-1.minIO_URL', dest='output_dataset_1_minio_url', type=str, required=True)
parser.add_argument('--output-dataset-1.minIO_ACCESS_KEY', dest='output_dataset_1_access_key', type=str, required=True)
parser.add_argument('--output-dataset-1.minIO_SECRET_KEY', dest='output_dataset_1_secret_key', type=str, required=True)
parser.add_argument('--input-dataset-2', dest='input_dataset_2', type=str, required=True)
parser.add_argument('--input-dataset-2.minio_bucket', dest='input_dataset_2_minio_bucket', type=str, required=True)
parser.add_argument('--input-dataset-2.minIO_URL', dest='input_dataset_2_minio_url', type=str, required=True)
parser.add_argument('--input-dataset-2.minIO_ACCESS_KEY', dest='input_dataset_2_access_key', type=str, required=True)
parser.add_argument('--input-dataset-2.minIO_SECRET_KEY', dest='input_dataset_2_secret_key', type=str, required=True)
parser.add_argument('--output-dataset-2', dest='output_dataset_2_dataset', type=str, required=True)
parser.add_argument('--output-dataset-2.minio_bucket', dest='output_dataset_2_minio_bucket', type=str, required=True)
parser.add_argument('--output-dataset-2.minIO_URL', dest='output_dataset_2_minio_url', type=str, required=True)
parser.add_argument('--output-dataset-2.minIO_ACCESS_KEY', dest='output_dataset_2_access_key', type=str, required=True)
parser.add_argument('--output-dataset-2.minIO_SECRET_KEY', dest='output_dataset_2_secret_key', type=str, required=True)
parser.add_argument('--input-dataset-3', dest='input_dataset_3', type=str, required=True)
parser.add_argument('--input-dataset-3.minio_bucket', dest='input_dataset_3_minio_bucket', type=str, required=True)
parser.add_argument('--input-dataset-3.minIO_URL', dest='input_dataset_3_minio_url', type=str, required=True)
parser.add_argument('--input-dataset-3.minIO_ACCESS_KEY', dest='input_dataset_3_access_key', type=str, required=True)
parser.add_argument('--input-dataset-3.minIO_SECRET_KEY', dest='input_dataset_3_secret_key', type=str, required=True)
parser.add_argument('--output-dataset-3', dest='output_dataset_3_dataset', type=str, required=True)
parser.add_argument('--output-dataset-3.minio_bucket', dest='output_dataset_3_minio_bucket', type=str, required=True)
parser.add_argument('--output-dataset-3.minIO_URL', dest='output_dataset_3_minio_url', type=str, required=True)
parser.add_argument('--output-dataset-3.minIO_ACCESS_KEY', dest='output_dataset_3_access_key', type=str, required=True)
parser.add_argument('--output-dataset-3.minIO_SECRET_KEY', dest='output_dataset_3_secret_key', type=str, required=True)
args, unknown = parser.parse_known_args()
def minio_ls(address, access_key, secret_key, bucket_name, folder, extention, use_ssl=False):
if folder[-1] != "/":
folder = folder + "/"
client = Minio(
address,
access_key=access_key,
secret_key=secret_key,
secure=use_ssl
)
objects = client.list_objects(bucket_name=bucket_name, prefix=folder)
files_list = [x._object_name for x in objects if extention in x._object_name[-len(extention):]]
if len(files_list) > 1:
return ["s3://" + bucket_name + "/" + x for x in files_list]
elif len(files_list) == 1:
return "s3://" + bucket_name + "/" + files_list[0]
else:
raise Exception("Dataset is empty!")
def fetch_dataset(dataset, minio_url, access_key, secret_key, bucket_name, extention):
storage_options = {
'key': access_key,
'secret': secret_key,
'client_kwargs': {
'endpoint_url': f'{minio_url}'
}
}
file_path = minio_ls(minio_url, access_key, secret_key, bucket_name, dataset, extention)
input_dataset = pd.read_csv(file_path, storage_options=storage_options, sep = None, engine = 'python')
return input_dataset
def upload_dataset(df, path, minio_url, access_key, secret_key, bucket_name):
storage_options = {
'key': access_key,
'secret': secret_key,
'client_kwargs': {
'endpoint_url': f'{minio_url}'
}
}
file_path = f"s3://{bucket_name}/{path}/dataset.csv"
df.to_csv(file_path,
storage_options=storage_options,
index=False
)
input_dataset_1 = fetch_dataset(args.input_dataset_1_minio_url, args.input_dataset_1_access_key, args.input_dataset_1_secret_key, args.input_dataset_1_minio_bucket, args.input_dataset_1_dataset, ".csv")
input_dataset_2 = fetch_dataset(args.input_dataset_2_minio_url, args.input_dataset_2_access_key, args.input_dataset_2_secret_key, args.input_dataset_2_minio_bucket, args.input_dataset_2_dataset, ".csv")
input_dataset_3 = fetch_dataset(args.input_dataset_3_minio_url, args.input_dataset_3_access_key, args.input_dataset_3_secret_key, args.input_dataset_3_minio_bucket, args.input_dataset_3_dataset, ".csv")
# Add the "Status" column with "Updated" in every row
input_dataset_1['Status'] = 'Updated 1'
input_dataset_2['Status'] = 'Updated 2'
input_dataset_3['Status'] = 'Updated 3'
upload_dataset(input_dataset_1, args.output_dataset_1_dataset, args.output_dataset_1_minio_url, args.output_dataset_1_access_key, args.output_dataset_1_secret_key, args.output_dataset_1_minio_bucket)
upload_dataset(input_dataset_2, args.output_dataset_2_dataset, args.output_dataset_2_minio_url, args.output_dataset_2_access_key, args.output_dataset_2_secret_key, args.output_dataset_2_minio_bucket)
upload_dataset(input_dataset_3, args.output_dataset_3_dataset, args.output_dataset_3_minio_url, args.output_dataset_3_access_key, args.output_dataset_3_secret_key, args.output_dataset_3_minio_bucket)
Metamodel
{
"name": "multiple-io-example",
"description": "Multiple IO example",
"mode": "BATCH",
"url": "docker://gitlab.alidalab.it:5000/alida/analytics/python-applications/multiple-io-example:1.0.0",
"version": "1.0.0",
"accessLevel": "PUBLIC",
"properties": [
{
"description": "Your input dataset 1",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-dataset-1",
"valueType": "STRING",
"invisible": true
},
{
"defaultValue": "ANY",
"description": "Selected columns from table",
"key": "input-columns-1",
"type": "application",
"mandatory": true,
"valueType": "STRING",
"invisible": true
},
{
"description": "Your input dataset 2",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-dataset-2",
"valueType": "STRING",
"invisible": true
},
{
"defaultValue": "ANY",
"description": "Selected columns from table",
"key": "input-columns-2",
"type": "application",
"mandatory": true,
"valueType": "STRING",
"invisible": true
},
{
"description": "Your input dataset 3",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-dataset-3",
"valueType": "STRING",
"invisible": true
},
{
"defaultValue": "ANY",
"description": "Selected columns from table",
"key": "input-columns-3",
"type": "application",
"mandatory": true,
"valueType": "STRING",
"invisible": true
},
{
"description": "Your output dataset 1",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "output-dataset-1",
"valueType": "STRING",
"invisible": true
},
{
"description": "Your output dataset 2",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "output-dataset-2",
"valueType": "STRING",
"invisible": true
},
{
"description": "Your output dataset 3",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "output-dataset-3",
"valueType": "STRING",
"invisible": true
}
]
}

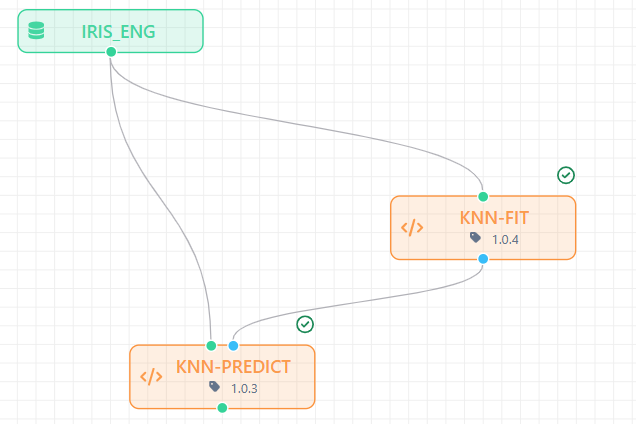

Es. 7: Input Dataset + Output Model + Workflow Media
Codice Programma Nucleo
import argparse
import os
from minio import Minio
from arguments import args
from kafka import KafkaProducer
import pandas as pd
from arguments import args
from sklearn.neighbors import KNeighborsClassifier
from joblib import dump, load
import matplotlib.pyplot as plt
from sklearn.metrics import ConfusionMatrixDisplay
from utilities import minio_ls, prepare_file_metadata, upload_file_to_minio
from producer import send_message
parser = argparse.ArgumentParser()
parser.add_argument('--input-dataset', dest='input_dataset', type=str, required=True)
parser.add_argument('--input-dataset.minio_bucket', dest='input_dataset_minio_bucket', type=str, required=True)
parser.add_argument('--input-dataset.minIO_URL', dest='input_dataset_minio_url', type=str, required=True)
parser.add_argument('--input-dataset.minIO_ACCESS_KEY', dest='input_dataset_access_key', type=str, required=True)
parser.add_argument('--input-dataset.minIO_SECRET_KEY', dest='input_dataset_secret_key', type=str, required=True)
parser.add_argument('--output-model', dest='output_model', type=str, required=True)
parser.add_argument('--output-model.minio_bucket', dest='output_model_minio_bucket', type=str, required=True)
parser.add_argument('--output-model.minIO_URL', dest='output_model_minio_url', type=str, required=True)
parser.add_argument('--output-model.minIO_ACCESS_KEY', dest='output_model_access_key', type=str, required=True)
parser.add_argument('--output-model.minIO_SECRET_KEY', dest='output_model_secret_key', type=str, required=True)
parser.add_argument('--go_manager.brokers', dest='go_manager_brokers', type=str, required=True)
parser.add_argument('--go_manager_topic', dest='go_manager_topic', type=str, required=True)
parser.add_argument('--go_manager', dest='minio_path', type=str, required=True)
parser.add_argument('--go_manager.minio_bucket', dest='minio_bucket', type=str, required=True)
parser.add_argument('--go_manager.minIO_URL', dest='minio_url', type=str, required=True)
parser.add_argument('--go_manager.minIO_ACCESS_KEY', dest='minio_access_key', type=str, required=True)
parser.add_argument('--go_manager.minIO_SECRET_KEY', dest='minio_secret_key', type=str, required=True)
parser.add_argument("--labelCol", dest='labelCol'. help="Name of the column containing the label", type=str, required=True)
parser.add_argument("--direct_args_to_sklearn_function", dest='direct_args_to_sklearn_function'. help="This args are going to be injected to the KNeighborsClassifier.fit function directly", type=str, default='{"n_neighbors":3}')
args, unknown = parser.parse_known_args()
def minio_ls(address, access_key, secret_key, bucket_name, folder, extention, use_ssl=False):
if folder[-1] != "/":
folder = folder + "/"
client = Minio(
address,
access_key=access_key,
secret_key=secret_key,
secure=use_ssl
)
objects = client.list_objects(bucket_name=bucket_name, prefix=folder)
files_list = [x._object_name for x in objects if extention in x._object_name[-len(extention):]]
if len(files_list) > 1:
return ["s3://" + bucket_name + "/" + x for x in files_list]
elif len(files_list) == 1:
return "s3://" + bucket_name + "/" + files_list[0]
else:
raise Exception("Dataset is empty!")
def upload_file_to_minio(minio_url, access_key, secret_key, bucket_name, object_name, local_file_path):
# Initialize the MinIO client
client = Minio(minio_url, access_key=access_key, secret_key=secret_key, secure=False)
# Upload the file
client.fput_object(bucket_name, object_name, local_file_path)
def prepare_metadata_json(name, messageType, title=None, description=None, var=None, show=True):
result = {
"name": name,
"key": name.lower().replace(" ", "-"),
"uuid": str(uuid.uuid4()),
"messageType": messageType,
"title": title,
"description": description,
"var": var,
"created": str(datetime.now()),
"modified": str(datetime.now()),
"show": show
}
if "SERVICE_ID" in os.environ:
result['serviceId'] = os.environ.get('SERVICE_ID')
if "EXECUTION_ID" in os.environ:
result['executionId'] = os.environ.get('EXECUTION_ID')
if "HASH_TOKEN" in os.environ:
result['hashToken'] = os.environ.get('HASH_TOKEN')
return result
def prepare_file_metadata(name, path, extension, filename):
metadata = prepare_metadata_json(name=name, messageType="picture")
metadata['path'] = path
metadata['extension'] = extension
metadata['filename'] = filename
return metadata
producer = KafkaProducer(bootstrap_servers=args.go_manager_brokers.split(","))
def send_message(data):
producer.send(args.go_manager_topic, json.dumps(data).encode('utf-8'))
producer.flush()
# Load the input dataset
storage_options = {
'key': args.input_access_key,
'secret': args.input_secret_key,
'client_kwargs': {
'endpoint_url': f'{args.input_minio_url}'
}
}
file_path = minio_ls(args.input_dataset_minio_url, args.input_dataset_access_key, args.input_dataset_secret_key, args.input_dataset_minio_bucket, args.input_dataset, ".csv")
dataset = pd.read_csv(file_path, storage_options=storage_options)
y = dataset[args.labelCol]
X = dataset.drop(args.labelCol, axis=1)
neigh = KNeighborsClassifier(json.loads(args.direct_args_to_sklearn_function))
neigh.fit(X=X, y=y)
# Saves plot in local path
disp = ConfusionMatrixDisplay.from_estimator(neigh, X, y)
disp.plot()
disp.ax_.set_title("Confusion Matrix")
plt.savefig("conf_matrix.png")
metadata = prepare_file_metadata("Confusion Matrix", "conf_matrix.png", "png", "conf_matrix.png")
#Send plot to minIo
upload_file_to_minio(args.minio_url, args.minio_access_key, args.minio_secret_key, args.minio_bucket, args.minio_path, 'conf_matrix.png')
send_message(metadata)
# Save the trained model locally as a .joblib fil
model_path = "./temp"
os.makedirs(model_path, exist_ok=True)
dump(neigh, os.path.join(model_path, 'model.joblib'))
# Upload to minIo
upload_file_to_minio(args.output_model_minio_url, args.output_model_access_key, args.output_model_secret_key, args.output_model_minio_bucket, args.output_model, model_path)
Metamodel
{
"name": "knn-fit",
"description": "Knn model training",
"mode": "BATCH",
"url": "docker://gitlab.alidalab.it:5000/alida/analytics/python-applications/knn-fit:1.0.0",
"version": "1.0.0",
"accessLevel": "PUBLIC",
"properties": [
{
"description": "Your input dataset description.",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-dataset",
"valueType": "STRING",
"invisible": true
},
{
"defaultValue": "ANY",
"description": "Selected columns from table",
"key": "input-columns",
"type": "application",
"mandatory": true,
"valueType": "STRING",
"invisible": true
},
{
"description": "Your model description",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "output-model",
"valueType": "STRING",
"invisible": true
},
{
"description": "Name of the column containing the label",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "labelCol",
"valueType": "STRING"
},
{
"description": "This args are going to be injected to the KNeighborsClassifier.fit function directly",
"mandatory": true,
"type": "application",
"defaultValue": "{\"n_neighbors\":3}",
"key": "direct_args_to_sklearn_function",
"valueType": "STRING"
}
]
}

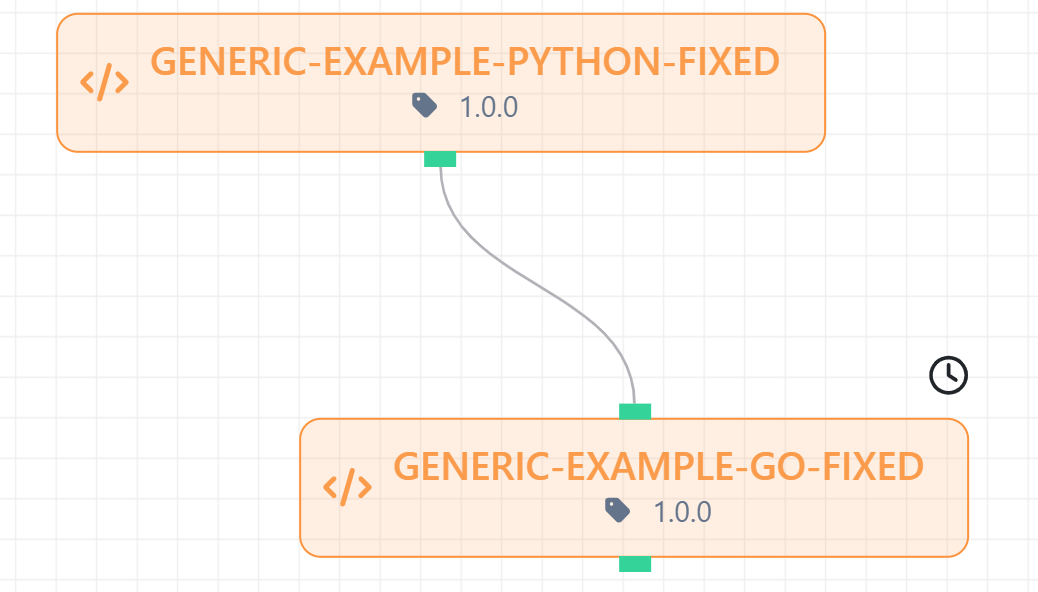

Es. 8: Generic Assets
Codice Programma Nucleo
package main
import (
"encoding/csv"
"fmt"
"os"
"path/filepath"
)
func appendHelloWorld(inputDir, outputDir string) {
// Trova i file CSV nella directory di input
files, err := filepath.Glob(filepath.Join(inputDir, "*.csv"))
if err != nil {
fmt.Println("Errore nella ricerca dei file:", err)
return
}
if len(files) == 0 {
fmt.Println("Nessun file CSV trovato nella directory di input")
return
}
// Usa il primo file trovato
inputFile := files[0]
outputFile := filepath.Join(outputDir, "output.csv")
// Apri il file di input
file, err := os.Open(inputFile)
if err != nil {
fmt.Println("Errore nell'apertura del file:", err)
return
}
defer file.Close()
reader := csv.NewReader(file)
rows, err := reader.ReadAll()
if err != nil {
fmt.Println("Errore nella lettura del file:", err)
return
}
// Aggiungi una nuova riga con "hello world"
rows = append(rows, []string{"hello world"})
// Crea la directory di output se non esiste
if err := os.MkdirAll(outputDir, os.ModePerm); err != nil {
fmt.Println("Errore nella creazione della directory di output:", err)
return
}
// Scrive il file CSV modificato
outFile, err := os.Create(outputFile)
if err != nil {
fmt.Println("Errore nella creazione del file di output:", err)
return
}
defer outFile.Close()
writer := csv.NewWriter(outFile)
err = writer.WriteAll(rows)
if err != nil {
fmt.Println("Errore nella scrittura del file CSV:", err)
return
}
fmt.Println("File salvato:", outputFile)
}
func main() {
inputDir := "/inputs"
outputDir := "/outputs"
appendHelloWorld(inputDir, outputDir)
}
Metamodel
{
"name": "generic-go-ex1",
"version": "1.0.0",
"accessLevel": "PUBLIC",
"description": "",
"mode": "BATCH",
"properties": [
{
"defaultValue": "{\"inputs\": [{\"name\": \"input-data\", \"path\": \"/inputs\", \"type\": \"dataset\",\"description\": \"my description\"}], \"outputs\": [{\"name\": \"output-data\", \"path\": \"/outputs\", \"type\": \"dataset\",\"description\": \"my description\"}]}",
"description": "",
"externalized": false,
"extra": null,
"invisible": true,
"key": "assets",
"mandatory": true,
"type": "application",
"uri": null,
"value": null,
"valueType": "JSON"
}
],
"ref": null,
"statusModel": null,
"tags": [],
"url": "docker://gitlab.alidalab.it:5000/alida/analytics2/example-go-1:latest"
}
Es. 9: Spark - Python
Di seguito un esempio di applicazione pyspark che legge un dataset in input e produce un modello in output e condivide i log dello spark driver tramite application media.
Vediamo prima l'immagine client.
Dockerfile:
FROM apache/spark:4.0.1
USER root
# Install yq
RUN wget https://github.com/mikefarah/yq/releases/download/v4.45.1/yq_linux_amd64 -O /usr/local/bin/yq && \
chmod +x /usr/local/bin/yq
# Install jq
RUN apt-get update && apt-get install -y jq
USER spark
COPY entrypoint.sh .
ENTRYPOINT ["/bin/sh", "entrypoint.sh"]
#!/bin/bash
# Variabili con default (sovrascrivibili con export prima dello script)
SPARK_MASTER="${SPARK_MASTER:-local[*]}"
SPARK_NAMESPACE="${NAMESPACE:-alida}"
SPARK_DEPLOY_MODE="${SPARK_DEPLOY_MODE:-client}"
SPARK_APP_NAME="${SPARK_APP_NAME:-sparkapp}"
SPARK_IMAGE="${SPARK_IMAGE:-dockerhub.alidalab.it/alida/restricted/services/spark-kmeans-example:1.0.1}"
SPARK_DRIVER_MEMORY="${SPARK_DRIVER_MEMORY:-4g}"
SPARK_DRIVER_CORES="${SPARK_DRIVER_CORES:-2}"
SPARK_EXECUTOR_MEMORY="${SPARK_EXECUTOR_MEMORY:-4g}"
SPARK_EXECUTOR_CORES="${SPARK_EXECUTOR_CORES:-2}"
SPARK_PULLSECRETS="${SPARK_PULLSECRETS:-alida-regcred}"
SEED="${SEED:-1}"
TARGET="${TARGET:-$(cat <<'EOF'
{
"affinity":{
"nodeAffinity":{
"requiredDuringSchedulingIgnoredDuringExecution":{
"nodeSelectorTerms":[
{
"matchExpressions":[
{
"key":"kubernetes.io/role",
"operator":"In",
"values":[
"opt-worker"
]
}
]
}
]
}
}
},
"tolerations":[
{
"effect":"NoSchedule",
"key":"opt-worker",
"operator":"Equal",
"value":"true"
},
{
"effect":"NoExecute",
"key":"opt-worker",
"operator":"Equal",
"value":"true"
}
]
}
EOF
)}"
# Extract affinity and tolerations into env vars
AFFINITY=$(echo "$TARGET" | jq -c '.affinity')
TOLERATIONS=$(echo "$TARGET" | jq -c '.tolerations')
echo "MAKING POD YAML DESCRIPTOR FROM TARGET ENV..."
# Convert JSON to YAML using yq
TOLERATIONS_YAML=$(echo "$TOLERATIONS" | yq eval -P -)
AFFINITY_YAML=$(echo "$AFFINITY" | yq eval -P -)
# Output to pod-template.yaml
cat <<EOF > pod-template.yaml
apiVersion: v1
kind: Pod
spec:
tolerations:
$(echo "$TOLERATIONS_YAML" | sed 's/^/ /')
affinity:
$(echo "$AFFINITY_YAML" | sed 's/^/ /')
EOF
echo "SUBMITTING SPARK APPLICATION..."
OUTPUT="$(/opt/spark/bin/spark-submit \
--master k8s://kubernetes.default.svc \
--deploy-mode cluster \
--name "${SPARK_APP_NAME}" \
--conf spark.kubernetes.namespace="${SPARK_NAMESPACE}" \
--conf spark.kubernetes.container.image=dockerhub.alidalab.it/alida/restricted/services/spark-kmeans-example:1.0.0 \
--conf spark.kubernetes.driver.limit.memory="${SPARK_DRIVER_MEMORY}" \
--conf spark.kubernetes.driver.limits.memory="${SPARK_DRIVER_MEMORY}" \
--conf spark.kubernetes.driver.request.cores="${SPARK_DRIVER_CORES}" \
--conf spark.kubernetes.executor.limit.memory="${SPARK_EXECUTOR_MEMORY}" \
--conf spark.kubernetes.executor.limits.memory="${SPARK_EXECUTOR_MEMORY}" \
--conf spark.kubernetes.executor.request.cores="${SPARK_EXECUTOR_CORES}" \
--conf spark.kubernetes.driver.podTemplateFile=pod-template.yaml \
--conf spark.kubernetes.executor.podTemplateFile=pod-template.yaml \
--conf spark.kubernetes.container.image.pullSecrets="${SPARK_PULLSECRETS}" \
--conf spark.kubernetes.driverEnv.EXECUTION_ID="${EXECUTION_ID}" \
--conf spark.kubernetes.driverEnv.HASH_TOKEN="${HASH_TOKEN}" \
--conf spark.kubernetes.driverEnv.SERVICE_ID="${SERVICE_ID}" \
--conf spark.kubernetes.container.image.pullPolicy=Always \
--conf spark.driver.memory="${SPARK_DRIVER_MEMORY}" \
--conf spark.kubernetes.authenticate.driver.serviceAccountName=argo-workflow \
--conf spark.hadoop.fs.s3a.path.style.access=true \
--conf spark.hadoop.fs.s3a.impl=org.apache.hadoop.fs.s3a.S3AFileSystem \
--conf spark.serializer=org.apache.spark.serializer.JavaSerializer \
--conf spark.hadoop.fs.s3a.connection.timeout=60000 \
--conf spark.hadoop.fs.s3a.connection.establish.timeout=5000 \
--conf spark.hadoop.fs.s3a.attempts.maximum=10 \
--conf spark.hadoop.fs.s3a.paging.maximum=1000 \
--conf spark.hadoop.fs.s3a.connection.maximum=200 \
--conf spark.hadoop.fs.s3a.aws.credentials.provider=org.apache.hadoop.fs.s3a.SimpleAWSCredentialsProvider \
--conf spark.hadoop.fs.s3a.threads.keepalivetime=60000 \
--conf spark.hadoop.fs.s3a.connection.ttl=300000 \
--conf spark.hadoop.fs.s3a.multipart.purge.age=86400000 \
--conf spark.hadoop.fs.s3a.assumed.role.session.duration=1800000 \
--conf spark.driver.userClassPathFirst=true \
--conf spark.executor.userClassPathFirst=true \
--conf spark.driver.log.localDir=/tmp \
--conf spark.driver.extraJavaOptions="-Ddriver.log.dir=/tmp -Dlog4j2.configurationFile=/opt/spark/conf/log4j2.properties" \
local:///app/src/main/main.py $@ 2>&1)"
echo "$OUTPUT"
# Extract the driver exit code from logs
DRIVER_EXIT_CODE=$(echo "$OUTPUT" | grep -oP '(?<=exit code: )\d+' | head -1)
DRIVER_POD=$(echo "$OUTPUT" | grep -oP '(?<=pod name: )\S+' | head -1)
# If DRIVER_EXIT_CODE is empty, fallback to 1
if [ -z "$DRIVER_EXIT_CODE" ]; then
echo "Empty exit code, fallback to 1"
DRIVER_EXIT_CODE=1
fi
# Log and exit if driver exit code != 0
if [ "$DRIVER_EXIT_CODE" -ne 0 ]; then
echo "ERROR: $DRIVER_POD failed with exit code: $DRIVER_EXIT_CODE"
fi
echo "$DRIVER_POD terminated with exit code: $DRIVER_EXIT_CODE"
exit $DRIVER_EXIT_CODE
{
"name": "spark-kmeans-example-error",
"version": "1.0.0",
"accessLevel": "PUBLIC",
"description": "spark-kmeans-example-submit",
"mode": "BATCH",
"properties": [
{
"description": "Your input dataset",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "input-dataset",
"valueType": "STRING",
"invisible": true
},
{
"description": "Your output model",
"mandatory": true,
"type": "application",
"defaultValue": null,
"key": "output-model",
"valueType": "STRING",
"invisible": true
},
{
"dataset": null,
"defaultValue": "ANY",
"description": "Selected columns from table",
"inputData": false,
"invisible": true,
"key": "input-columns",
"mandatory": true,
"model": null,
"obfuscated": false,
"outputData": false,
"type": "application",
"value": null,
"valueType": "STRING"
},
{
"dataset": null,
"defaultValue": "3",
"description": "Number of clusters for KMeans.",
"extra": null,
"inputData": false,
"invisible": false,
"key": "n_clusters",
"mandatory": false,
"model": null,
"obfuscated": false,
"outputData": false,
"type": "application",
"value": null,
"valueType": "INT"
},
{
"defaultValue": "1",
"description": "SEED",
"invisible": false,
"key": "SEED",
"mandatory": false,
"obfuscated": false,
"type": "static",
"valueType": "STRING"
}
],
"url": "docker://dockerhub.alidalab.it/alida/restricted/services/spark-kmeans-example-submit-err:1.0.0"
}
Di seguito l'applicazione.
Dockerfile
FROM apache/spark:4.0.1
USER root
# Install Python 3 and pip
RUN apt-get update && \
apt-get install -y python3 python3-pip python3-dev && \
apt-get clean && \
rm -rf /var/lib/apt/lists/*
COPY ./requirements.txt .
RUN pip install -r requirements.txt
# install dependencies to read/write on S3-compatible
ADD https://repo1.maven.org/maven2/org/apache/hadoop/hadoop-aws/3.3.6/hadoop-aws-3.3.6.jar /opt/spark/jars/hadoop-aws-3.3.6.jar
ADD https://repo1.maven.org/maven2/com/amazonaws/aws-java-sdk-bundle/1.12.406/aws-java-sdk-bundle-1.12.406.jar /opt/spark/jars/aws-java-sdk-bundle-1.12.406.jar
RUN chown -R spark:spark /opt/spark/jars
USER spark
COPY src/ /app/src/
# Copy custom log4j2 config
COPY log4j2.properties /opt/spark/conf/log4j2.properties
log4j2.properties
status = error
name = PropertiesConfig
# File appender (all logs go here)
appender.file.type = File
appender.file.name = FILE
appender.file.fileName = /path/to/your/logfile.log
appender.file.layout.type = PatternLayout
appender.file.layout.pattern = %d{yyyy-MM-dd HH:mm:ss.SSS} %-5level [%t] %c{1} - %msg%n
appender.file.immediateFlush = true
appender.file.append = true # ensure append mode
# Root logger
rootLogger.level = INFO
rootLogger.appenderRef.file.ref = FILE
import argparse
def str2bool(v):
if isinstance(v, bool):
return v
if v.lower() in ('yes', 'true', 't', 'y', '1'):
return True
elif v.lower() in ('no', 'false', 'f', 'n', '0', ''):
return False
parser = argparse.ArgumentParser()
parser.add_argument('--input-dataset', dest='input_dataset', type=str, required=True)
parser.add_argument('--input-dataset.minio_bucket', dest='input_dataset_minio_bucket', type=str, required=True)
parser.add_argument('--input-dataset.minIO_URL', dest='input_dataset_minio_url', type=str, required=True)
parser.add_argument('--input-dataset.minIO_ACCESS_KEY', dest='input_dataset_access_key', type=str, required=True)
parser.add_argument('--input-dataset.minIO_SECRET_KEY', dest='input_dataset_secret_key', type=str, required=True)
parser.add_argument('--input-dataset.use_ssl', dest='input_dataset_use_ssl', type=str2bool, required=True)
parser.add_argument('--output-model', dest='output_model', type=str, required=True)
parser.add_argument('--output-model.minio_bucket', dest='output_model_minio_bucket', type=str, required=True)
parser.add_argument('--output-model.minIO_URL', dest='output_model_minio_url', type=str, required=True)
parser.add_argument('--output-model.minIO_ACCESS_KEY', dest='output_model_access_key', type=str, required=True)
parser.add_argument('--output-model.minIO_SECRET_KEY', dest='output_model_secret_key', type=str, required=True)
parser.add_argument('--output-model.use_ssl', dest='output_model_use_ssl', type=str2bool, required=True)
parser.add_argument("--n_clusters", help="Number of clusters for KMeans." ,type=int, default=5)
parser.add_argument("--max_iterations", help="Number of clusters for KMeans." ,type=int, default=5)
parser.add_argument('--input-columns', dest='input_columns', type=str, required=False)
parser.add_argument('--go_manager.brokers', dest='go_manager_brokers', type=str, required=True)
parser.add_argument('--go_manager.topic', dest='go_manager_topic', type=str, required=True)
parser.add_argument('--go_manager.base_path', dest='go_minio_path', type=str, required=True)
parser.add_argument('--go_manager.minio_bucket', dest='go_minio_bucket', type=str, required=True)
parser.add_argument('--go_manager.minIO_URL', dest='go_minio_url', type=str, required=True)
parser.add_argument('--go_manager.minIO_ACCESS_KEY', dest='go_access_key', type=str, required=True)
parser.add_argument('--go_manager.minIO_SECRET_KEY', dest='go_secret_key', type=str, required=True)
parser.add_argument('--go_manager.use_ssl', dest='go_use_ssl', type=str2bool, required=True)
args, unknown = parser.parse_known_args()
main.py
from pyspark.sql import SparkSession
from pyspark.ml.feature import VectorAssembler
from pyspark.ml.clustering import KMeans
from pyspark.ml.evaluation import ClusteringEvaluator
from utils import send_application_media
from arguments import args
import os
import sys
import atexit
import traceback
log_local_dir = os.environ.get("DRIVER_LOG_DIR", "/tmp")
log_file_path = f"{log_local_dir}/driver.log"
log_file = open(log_file_path, "a") # append mode
sys.stdout = log_file
sys.stderr = log_file
print("This Python print will also go to the log file.")
def run_kmeans_example(k: int = 3,
max_iter: int = 20,
init_mode: str = "k-means||"):
"""
Runs KMeans clustering on a dataset.
Args:
input_path: path to data (could be CSV, Parquet, libsvm etc.)
k: number of clusters
max_iter: maximum number of iterations
tol: convergence tolerance
init_mode: initialization mode ("random" or "k-means||")
seed: random seed
"""
# Create Spark session (Spark 4.0.0)
spark = SparkSession.builder \
.appName("KMeansExample_Spark_4_0_0") \
.config("spark.hadoop.fs.s3a.endpoint", args.input_dataset_minio_url) \
.config("spark.hadoop.fs.s3a.access.key", args.input_dataset_access_key) \
.config("spark.hadoop.fs.s3a.secret.key", args.input_dataset_secret_key) \
.config("spark.hadoop.fs.s3a.connection.ssl.enabled", args.input_dataset_use_ssl) \
.getOrCreate()
sc = spark.sparkContext
df = spark.read.option("header", "true").option("inferSchema", "true").csv(f"s3a://{args.input_dataset_minio_bucket}/{args.input_dataset}")
#Suppose you know which columns are numeric features
feature_cols = [c for c, t in df.dtypes if t in ("double", "float", "int", "long")]
#Remove columns you don't want, e.g. label or id
feature_cols = [c for c in feature_cols if c not in ("CustomerID")]
# Assemble into feature vector
assembler = VectorAssembler(inputCols=feature_cols, outputCol="features")
df_features = assembler.transform(df).select("features")
# Instantiate KMeans
kmeans = KMeans(
k=k,
initMode=init_mode,
maxIter=max_iter
)
# Fit the model
model = kmeans.fit(df_features)
# Get cluster centers
centers = model.clusterCenters()
print(f"Cluster Centers: {centers}")
# Make predictions
predictions = model.transform(df_features)
# Evaluate clustering (silhouette score)
evaluator = ClusteringEvaluator(metricName="silhouette", distanceMeasure="squaredEuclidean", featuresCol="features", predictionCol="prediction")
silhouette = evaluator.evaluate(predictions)
print(f"Silhouette with squared euclidean distance = {silhouette}")
# Summary: get sizes etc
summary = model.summary
print(f"Cluster sizes -> {summary.clusterSizes}")
print(f"Training cost (sum of squared distances): {summary.trainingCost}")
print(f"Number of iterations until convergence: {summary.numIter}")
print(f"Saving model to Minio")
model.write().overwrite().save(f"s3a://{args.output_model_minio_bucket}/{args.output_model}/kmeans-model-pyspark")
spark.stop()
def save_log_to_minio():
try:
send_application_media("/tmp/driver.log", "driver.log", "file", args)
except Exception:
print ("Failed to upload logs to application media")
traceback.print_exc()
if __name__ == "__main__":
atexit.register(save_log_to_minio)
print(f"START SPARK JOB - SERVICE {os.environ.get('SERVICE_ID', 'SERVICE_ID')}")
run_kmeans_example(k=args.n_clusters, max_iter=args.max_iterations, init_mode="k-means||")
print(f"END SPARK JOB - SERVICE {os.environ.get('SERVICE_ID', 'SERVICE_ID')}")
utils.py
import json
import os
import uuid
from datetime import datetime
from kafka import KafkaProducer
from minio import Minio
def _init_producer_kafka(args):
if not hasattr(_init_producer_kafka, "_producer"):
kafka_brokers = args.go_manager_brokers.split(",")
_init_producer_kafka._producer = KafkaProducer(
bootstrap_servers=kafka_brokers
)
return _init_producer_kafka._producer
def upload_file_to_minio(minio_url, access_key, secret_key, bucket_name, object_name, local_file_path, secure=False):
# Initialize the MinIO client
address = minio_url.replace("http://", "").replace("https://", "")
client = Minio(address, access_key=access_key, secret_key=secret_key, secure=secure)
# Upload the file
client.fput_object(bucket_name, object_name, local_file_path)
def prepare_metadata_json(name, messageType):
result = {
"name": name,
"key": name.lower().replace(" ", "-"),
"uuid": str(uuid.uuid4()),
"messageType": messageType,
"created": str(datetime.now()),
"modified": str(datetime.now())
}
if "SERVICE_ID" in os.environ:
result['serviceId'] = os.environ.get('SERVICE_ID')
if "EXECUTION_ID" in os.environ:
result['executionId'] = os.environ.get('EXECUTION_ID')
if "HASH_TOKEN" in os.environ:
result['hashToken'] = os.environ.get('HASH_TOKEN')
return result
def send_message(data, args):
producer = _init_producer_kafka(args)
producer.send(args.go_manager_topic, json.dumps(data).encode('utf-8'))
producer.flush()
def prepare_file_metadata(name, messageType, path, extension, filename, **kwargs):
metadata = prepare_metadata_json(name=name, messageType=messageType, **kwargs)
metadata['path'] = path
metadata['extension'] = extension
if messageType == "picture":
metadata['filename'] = filename
return metadata
def send_application_media(file_to_send, file_name, file_type, args, **kwargs):
folder = args.go_minio_path
if folder[-1] != "/":
folder = folder + "/"
metadata = prepare_file_metadata(name=os.path.basename(file_to_send).split('.')[0], messageType=file_type, path=folder + file_name,
extension=os.path.basename(file_to_send).split('.')[-1], filename=file_name, **kwargs)
upload_file_to_minio(args.go_minio_url, args.go_access_key, args.go_secret_key, args.go_minio_bucket, folder + file_name, file_to_send, secure=args.go_use_ssl)
print(f"[MEDIA] type={file_type} local={file_to_send} remote_object={args.go_minio_url} uploadto={args.go_minio_path + file_name}")
send_message(metadata, args)
def send_log(name, value, value_type, args, **kwargs):
message_to_sent = prepare_metadata_json(name, "log", **kwargs)
message_to_sent['value'] = value
message_to_sent['valueType'] = value_type
send_message(message_to_sent, args)
Es. 10: Spark - Java
Di seguito un esempio di applicazione spark in java che legge un dataset in input e produce un modello in output e condivide i log dello spark driver tramite application media.
Vediamo prima l'immagine client.
Il Dockerfile è standard, intalla i tool jq e yq per manipolare json e yml in modo da approntare il template per il pod.
FROM apache/spark:4.0.1
USER root
# Install yq
RUN wget https://github.com/mikefarah/yq/releases/download/v4.45.1/yq_linux_amd64 -O /usr/local/bin/yq && \
chmod +x /usr/local/bin/yq
# Install jq
RUN apt-get update && apt-get install -y jq
USER spark
COPY entrypoint.sh .
ENTRYPOINT ["/bin/sh", "entrypoint.sh"]
#!/bin/bash
set -e
# Variabili con default (sovrascrivibili con export prima dello script)
SPARK_MASTER="${SPARK_MASTER:-local[*]}"
SPARK_NAMESPACE="${NAMESPACE:-alida}"
SPARK_DEPLOY_MODE="${SPARK_DEPLOY_MODE:-client}"
SPARK_APP_NAME="${SPARK_APP_NAME:-sparkapp}"
SPARK_IMAGE="${SPARK_IMAGE:-dockerhub.alidalab.it/alida/restricted/services/spark-kmeans-java-example:1.0.0}"
SPARK_DRIVER_MEMORY="${SPARK_DRIVER_MEMORY:-4g}"
SPARK_DRIVER_CORES="${SPARK_DRIVER_CORES:-1}"
SPARK_EXECUTOR_MEMORY="${SPARK_EXECUTOR_MEMORY:-4g}"
SPARK_EXECUTOR_CORES="${SPARK_EXECUTOR_CORES:-1}"
SPARK_PULLSECRETS="${SPARK_PULLSECRETS:-alida-regcred}"
SEED="${SEED:-1}"
TARGET="${TARGET:-$(cat <<'EOF'
{
"affinity":{
"nodeAffinity":{
"requiredDuringSchedulingIgnoredDuringExecution":{
"nodeSelectorTerms":[
{
"matchExpressions":[
{
"key":"kubernetes.io/role",
"operator":"In",
"values":[
"opt-worker"
]
}
]
}
]
}
}
},
"tolerations":[
{
"effect":"NoSchedule",
"key":"opt-worker",
"operator":"Equal",
"value":"true"
},
{
"effect":"NoExecute",
"key":"opt-worker",
"operator":"Equal",
"value":"true"
}
]
}
EOF
)}"
# Extract affinity and tolerations into env vars
AFFINITY=$(echo "$TARGET" | jq -c '.affinity')
TOLERATIONS=$(echo "$TARGET" | jq -c '.tolerations')
echo "MAKING POD YAML DESCRIPTOR FROM TARGET ENV..."
# Convert JSON to YAML using yq
TOLERATIONS_YAML=$(echo "$TOLERATIONS" | yq eval -P -)
AFFINITY_YAML=$(echo "$AFFINITY" | yq eval -P -)
# Output to pod-template.yaml
cat <<EOF > pod-template.yaml
apiVersion: v1
kind: Pod
spec:
tolerations:
$(echo "$TOLERATIONS_YAML" | sed 's/^/ /')
affinity:
$(echo "$AFFINITY_YAML" | sed 's/^/ /')
EOF
echo "SUBMITTING SPARK APPLICATION..."
OUTPUT="$(/opt/spark/bin/spark-submit \
--master k8s://kubernetes.default.svc \
--deploy-mode cluster \
--name "${SPARK_APP_NAME}" \
--class it.eng.spark.Kmeans \
--conf spark.kubernetes.namespace="${SPARK_NAMESPACE}" \
--conf spark.kubernetes.container.image=dockerhub.alidalab.it/alida/restricted/services/spark-kmeans-java-example:1.0.0 \
--conf spark.kubernetes.driver.limit.memory="${SPARK_DRIVER_MEMORY}" \
--conf spark.kubernetes.driver.limits.memory="${SPARK_DRIVER_MEMORY}" \
--conf spark.kubernetes.driver.request.cores="${SPARK_DRIVER_CORES}" \
--conf spark.kubernetes.executor.limit.memory="${SPARK_EXECUTOR_MEMORY}" \
--conf spark.kubernetes.executor.limits.memory="${SPARK_EXECUTOR_MEMORY}" \
--conf spark.kubernetes.executor.request.cores="${SPARK_EXECUTOR_CORES}" \
--conf spark.kubernetes.driver.podTemplateFile=pod-template.yaml \
--conf spark.kubernetes.executor.podTemplateFile=pod-template.yaml \
--conf spark.kubernetes.driverEnv.SEED="${SEED}" \
--conf spark.kubernetes.executorEnv.SEED="${SEED}" \
--conf spark.kubernetes.container.image.pullSecrets="${SPARK_PULLSECRETS}" \
--conf spark.kubernetes.container.image.pullPolicy=Always \
--conf spark.kubernetes.authenticate.driver.serviceAccountName=argo-workflow \
--conf spark.driver.memory="${SPARK_DRIVER_MEMORY}" \
--conf spark.hadoop.fs.s3a.path.style.access=true \
--conf spark.hadoop.fs.s3a.impl=org.apache.hadoop.fs.s3a.S3AFileSystem \
--conf spark.serializer=org.apache.spark.serializer.JavaSerializer \
--conf spark.hadoop.fs.s3a.connection.timeout=60000 \
--conf spark.hadoop.fs.s3a.connection.establish.timeout=5000 \
--conf spark.hadoop.fs.s3a.attempts.maximum=10 \
--conf spark.hadoop.fs.s3a.paging.maximum=1000 \
--conf spark.hadoop.fs.s3a.connection.maximum=200 \
--conf spark.hadoop.fs.s3a.aws.credentials.provider=org.apache.hadoop.fs.s3a.SimpleAWSCredentialsProvider \
--conf spark.hadoop.fs.s3a.threads.keepalivetime=60000 \
--conf spark.hadoop.fs.s3a.connection.ttl=300000 \
--conf spark.hadoop.fs.s3a.multipart.purge.age=86400000 \
--conf spark.hadoop.fs.s3a.assumed.role.session.duration=1800000 \
--conf spark.kubernetes.driverEnv.EXECUTION_ID="${EXECUTION_ID}" \
--conf spark.kubernetes.driverEnv.HASH_TOKEN="${HASH_TOKEN}" \
--conf spark.kubernetes.driverEnv.SERVICE_ID="${SERVICE_ID}" \
--conf spark.driver.userClassPathFirst=true \
--conf spark.executor.userClassPathFirst=true \
--conf spark.driver.log.localDir=/tmp \
--conf spark.driver.extraJavaOptions="-Ddriver.log.dir=/tmp -Dlog4j.configurationFile=/tmp/log4j2.properties" \
--conf spark.executor.extraJavaOptions="-Dlog4j2.configurationFile=/tmp/log4j2.xml -Ddriver.log.dir=/tmp" \
local:///tmp/kmeans-example-1.0.jar $@ 2>&1)"
echo "$OUTPUT"
# Extract the driver exit code from logs
DRIVER_EXIT_CODE=$(echo "$OUTPUT" | grep -oP '(?<=exit code: )\d+' | head -1)
DRIVER_POD=$(echo "$OUTPUT" | grep -oP '(?<=pod name: )\S+' | head -1)
# If DRIVER_EXIT_CODE is empty, fallback to 1
if [ -z "$DRIVER_EXIT_CODE" ]; then
echo "Empty exit code, fallback to 1"
DRIVER_EXIT_CODE=1
fi
# Log and exit if driver exit code != 0
if [ "$DRIVER_EXIT_CODE" -ne 0 ]; then
echo "ERROR: $DRIVER_POD failed with exit code: $DRIVER_EXIT_CODE"
fi
echo "$DRIVER_POD terminated with exit code: $DRIVER_EXIT_CODE"
exit $DRIVER_EXIT_CODE
Mentre di seguito l'immagine applicativa. Nel Dockerfile viene caricato il jar dell'applicazione e il file di configurazione di log4j2.
Dockerfile
FROM apache/spark:4.0.1
COPY target/kmeans-example-1.0.jar /tmp/kmeans-example-1.0.jar
COPY log4j2.properties /tmp/log4j2.properties
log4j2.properties
status = error
# Console appender
appender.console.type = Console
appender.console.name = CONSOLE
appender.console.target = SYSTEM_OUT
appender.console.layout.type = PatternLayout
appender.console.layout.pattern = %d{yyyy-MM-dd HH:mm:ss} [%t] %-5p %c{1}: %m%n
# File appender
appender.file.type = File
appender.file.name = FILE
appender.file.fileName = /tmp/application.log
appender.file.append = true
appender.file.layout.type = PatternLayout
appender.file.layout.pattern = %d{yyyy-MM-dd HH:mm:ss} [%t] %-5p %c{1}: %m%n
# Root logger references both
rootLogger.level = INFO
rootLogger.appenderRef.console.ref = CONSOLE
rootLogger.appenderRef.file.ref = FILE
logger.spark.name = org.apache.spark
logger.spark.level = INFO
logger.spark.additivity = false
logger.spark.appenderRef.file.ref = FILE
logger.spark.appenderRef.console.ref = CONSOLE
Di seguto il pom.xml. E' stato usato il plugin shade per la creazione di un fat jar comprensivo delle dipendenze necessarie all'esecuzione. Notare la clausola provided per le dipendenze fornite da spark, e le esclusioni di moduli relativi ad aws non necessari.
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>it.eng.spark</groupId>
<artifactId>kmeans-example</artifactId>
<version>1.0</version>
<properties>
<maven.compiler.source>17</maven.compiler.source>
<maven.compiler.target>17</maven.compiler.target>
<spark.version>4.0.1</spark.version>
<scala.binary.version>2.13</scala.binary.version>
<hadoop.version>3.4.1</hadoop.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<!-- Spark Core -->
<dependency>
<groupId>org.apache.spark</groupId>
<artifactId>spark-core_${scala.binary.version}</artifactId>
<version>${spark.version}</version>
<scope>provided</scope>
</dependency>
<!-- Spark MLlib -->
<dependency>
<groupId>org.apache.spark</groupId>
<artifactId>spark-mllib_${scala.binary.version}</artifactId>
<version>${spark.version}</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.kafka</groupId>
<artifactId>kafka-clients</artifactId>
<version>3.6.1</version>
</dependency>
<dependency>
<groupId>io.minio</groupId>
<artifactId>minio</artifactId>
<version>8.5.7</version>
<exclusions>
<exclusion>
<groupId>com.amazonaws</groupId>
<artifactId>aws-java-sdk-bundle</artifactId>
</exclusion>
<exclusion>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>*</artifactId>
</exclusion>
<exclusion>
<groupId>software.amazon.awssdk</groupId>
<artifactId>*</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-common</artifactId>
<version>${hadoop.version}</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.hadoop</groupId>
<artifactId>hadoop-aws</artifactId>
<version>${hadoop.version}</version>
</dependency>
</dependencies>
<build>
<plugins>
<!-- Maven Compiler Plugin -->
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.11.0</version>
<configuration>
<source>17</source>
<target>17</target>
</configuration>
</plugin>
<!-- Maven Shade Plugin -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<version>3.5.0</version>
<executions>
<execution>
<phase>package</phase>
<goals>
<goal>shade</goal>
</goals>
<configuration>
<createDependencyReducedPom>true</createDependencyReducedPom>
<filters>
<filter>
<artifact>*:*</artifact>
<!-- Exclude all useless AWS & SLF4J from the shaded JAR -->
<excludes>
<exclude>com/amazonaws/services/dynamodbv2/**</exclude>
<exclude>com/amazonaws/services/sqs/**</exclude>
<exclude>com/amazonaws/services/kinesis/**</exclude>
<exclude>org/slf4j/**</exclude>
<exclude>META-INF/*.SF</exclude>
<exclude>META-INF/*.DSA</exclude>
<exclude>META-INF/*.RSA</exclude>
</excludes>
</filter>
</filters>
<transformers>
<!-- Set Main-Class -->
<transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
<mainClass>it.eng.spark.Kmeans</mainClass>
</transformer>
</transformers>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>
</project>
package it.eng.spark;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
import org.apache.hadoop.util.VersionInfo;
import org.apache.spark.SparkConf;
import org.apache.spark.ml.clustering.KMeans;
import org.apache.spark.ml.clustering.KMeansModel;
import org.apache.spark.ml.evaluation.ClusteringEvaluator;
import org.apache.spark.ml.feature.StringIndexer;
import org.apache.spark.ml.feature.VectorAssembler;
import org.apache.spark.sql.Dataset;
import org.apache.spark.sql.Row;
import org.apache.spark.sql.SparkSession;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
public class Kmeans {
private static final Logger logger = LoggerFactory.getLogger(Kmeans.class);
private static Map<String, String> convertToKeyValuePair(String[] args) {
HashMap<String, String> params = new HashMap<>();
for (String arg: args) {
if (arg.contains("=")) {
String[] splitFromEqual = arg.split("=");
String key = splitFromEqual[0].substring(2);
String value = splitFromEqual[1];
params.put(key, value);
}
}
return params;
}
private static void uploadLogs(Map<String, String> arguments) {
try {
logger.info("Sending logs to application media...");
Utils.sendApplicationMedia(System.getProperty("driver.log.dir")+"/driver.log", "driver.log", "file", arguments);
Utils.sendApplicationMedia(System.getProperty("driver.log.dir")+"/application.log", "application.log", "file", arguments);
logger.info("Sent logs to application media.");
}catch(Exception e) {
logger.error("Error uploading logs at exit.");
logger.error(e.getMessage(), e);
}
}
private static void executeJob(Map<String, String> arguments) throws IOException {
logger.info("START - KMEANS");
logger.info("Hadoop version in classpath: {}", VersionInfo.getVersion());
logger.info("SEED {}", System.getenv("SEED"));
SparkConf sparkConf = new SparkConf()
.set("spark.hadoop.fs.s3a.endpoint", arguments.get("input-dataset.minIO_URL"))
.set("spark.hadoop.fs.s3a.access.key", arguments.get("input-dataset.minIO_ACCESS_KEY"))
.set("spark.hadoop.fs.s3a.secret.key", arguments.get("input-dataset.minIO_SECRET_KEY"))
.set("spark.hadoop.fs.s3a.connection.ssl.enabled", arguments.get("input-dataset.use_ssl"));
SparkSession spark = SparkSession
.builder()
.appName("JavaKMeansExample")
.config(sparkConf)
.getOrCreate();
String bucketName = arguments.get("input-dataset.minio_bucket");
String folderPath = arguments.get("input-dataset");
Dataset<Row> dataset = spark
.read()
.format("csv")
.option("header","true")
.option("inferSchema", "true")
.csv("s3a://"+bucketName+"/"+folderPath)
;
dataset = dataset.select("sepal_length", "sepal_width", "petal_length", "petal_width", "variety");
logger.info("=== Sample of the input dataset ===");
dataset.show(10, false);
// Convert string label to numeric index (useful for cross-tab)
StringIndexer indexer = new StringIndexer()
.setInputCol("variety")
.setOutputCol("varietyIndex")
.setHandleInvalid("keep");
Dataset<Row> withIndex = indexer.fit(dataset).transform(dataset);
// Assemble features into a single vector column
VectorAssembler assembler = new VectorAssembler()
.setInputCols(new String[]{"sepal_length", "sepal_width", "petal_length", "petal_width"})
.setOutputCol("features");
Dataset<Row> withFeatures = assembler.transform(withIndex).select("features", "variety", "varietyIndex");
// Configure KMeans
KMeans kmeans = new KMeans()
.setK(Integer.parseInt(arguments.get("k")))
.setSeed(Long.parseLong(System.getenv("SEED")))
.setMaxIter(Integer.parseInt(arguments.get("maxIterations")))
.setFeaturesCol("features")
.setPredictionCol("prediction");
// Train model
KMeansModel model = kmeans.fit(withFeatures);
//Save model to minio
String modelBucket = arguments.get("output-model.minio_bucket");
String bucketPath = arguments.get("output-model");
String modelOutputPath = "s3a://"+modelBucket+"/"+bucketPath+"/kmeans-model";
model.write().overwrite().save(modelOutputPath);
logger.info("Model saved successfully to MinIO: " + modelOutputPath);
// Make predictions
Dataset<Row> predictions = model.transform(withFeatures);
// Show cluster centers
logger.info("=== Cluster Centers ===");
org.apache.spark.ml.linalg.Vector[] centers = model.clusterCenters();
for (int i = 0; i < centers.length; i++) {
logger.info("Center " + i + ": " + centers[i]);
}
// Evaluate clustering by silhouette score
ClusteringEvaluator evaluator = new ClusteringEvaluator()
.setFeaturesCol("features")
.setPredictionCol("prediction")
.setMetricName("silhouette");
double silhouette = evaluator.evaluate(predictions);
logger.info("Silhouette with squared euclidean distance = " + silhouette);
// Show counts per cluster
logger.info("=== Counts per cluster ===");
predictions.groupBy("prediction").count().show(false);
// Cross-tab between prediction and true variety
logger.info("=== Cross-tab (prediction vs variety) ===");
predictions.groupBy("prediction", "variety").count().orderBy("prediction").show(100, false);
spark.stop();
logger.info("END - KMEANS");
}
public static void main (String[] args) throws IOException {
Map<String, String> arguments = convertToKeyValuePair(args);
Runtime.getRuntime().addShutdownHook(new Thread(() -> uploadLogs(arguments)));
try {
executeJob(arguments);
}catch(Exception e) {
logger.error(e.getMessage(), e);
throw e;
}
}
}
package it.eng.spark;
import java.util.HashMap;
import com.fasterxml.jackson.databind.ObjectMapper;
import io.minio.MinioClient;
import io.minio.UploadObjectArgs;
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerRecord;
import java.io.File;
import java.time.LocalDateTime;
import java.util.Map;
import java.util.Properties;
import java.util.UUID;
public class Utils {
private static KafkaProducer<String, String> kafkaProducer;
private static final ObjectMapper mapper = new ObjectMapper();
public static HashMap<String, String> convertToKeyValuePair(Object[] args) {
HashMap<String, String> params = new HashMap<>();
for (Object argument: args) {
String arg = (String) argument;
if (arg.contains("=")) {
String[] splitFromEqual = arg.split("=");
String key = splitFromEqual[0].substring(2);
String value = splitFromEqual[1];
params.put(key, value);
}
}
return params;
}
private static KafkaProducer<String, String> initKafkaProducer(Map<String, String> args) {
if (kafkaProducer == null) {
Properties props = new Properties();
props.put("bootstrap.servers", args.get("go_manager.brokers"));
props.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
props.put("value.serializer", "org.apache.kafka.common.serialization.StringSerializer");
kafkaProducer = new KafkaProducer<>(props);
}
return kafkaProducer;
}
public static void sendMessage(Map<String, Object> data, Map<String, String> args) throws Exception {
KafkaProducer<String, String> producer = initKafkaProducer(args);
String json = mapper.writeValueAsString(data);
producer.send(new ProducerRecord<>(args.get("go_manager.topic"), json));
producer.flush();
}
public static Map<String, Object> prepareFileMetadata(String name, String messageType, String path, String extension, String filename) {
Map<String, Object> metadata = prepareMetadataJson(name, messageType);
metadata.put("path", path);
metadata.put("extension", extension);
if ("picture".equals(messageType)) {
metadata.put("filename", filename);
}
return metadata;
}
public static Map<String, Object> prepareMetadataJson(String name, String messageType) {
Map<String, Object> result = new HashMap<>();
result.put("name", name);
result.put("key", name.toLowerCase().replace(" ", "-"));
result.put("uuid", UUID.randomUUID().toString());
result.put("messageType", messageType);
result.put("created", LocalDateTime.now().toString());
result.put("modified", LocalDateTime.now().toString());
if (System.getenv("SERVICE_ID") != null)
result.put("serviceId", System.getenv("SERVICE_ID"));
if (System.getenv("EXECUTION_ID") != null)
result.put("executionId", System.getenv("EXECUTION_ID"));
if (System.getenv("HASH_TOKEN") != null)
result.put("hashToken", System.getenv("HASH_TOKEN"));
return result;
}
public static void sendApplicationMedia(String fileToSend, String fileName, String fileType, Map<String, String> args) throws Exception {
String folder = args.get("go_manager.base_path").endsWith("/") ? args.get("go_manager.base_path") : args.get("go_manager.base_path") + "/";
String extension = new File(fileToSend).getName().replaceAll(".*\\.", "");
String objectName = folder + fileName;
String baseName = new File(fileToSend).getName().replace("." + extension, "");
Map<String, Object> metadata = prepareFileMetadata(baseName, fileType, objectName, extension, fileName);
uploadFileToMinio(args.get("go_manager.minIO_URL"), args.get("go_manager.minIO_ACCESS_KEY"), args.get("go_manager.minIO_SECRET_KEY"), args.get("go_manager.minio_bucket"), objectName, fileToSend, Boolean.parseBoolean(args.get("go_manager.use_ssl")));
sendMessage(metadata, args);
}
public static void uploadFileToMinio(String minioUrl, String accessKey, String secretKey,
String bucketName, String objectName, String localFilePath, boolean secure) throws Exception {
String endpoint = secure ? "https://" : "http://";
MinioClient client = MinioClient.builder()
.endpoint(endpoint+minioUrl)
.credentials(accessKey, secretKey)
.build();
client.uploadObject(
UploadObjectArgs.builder()
.bucket(bucketName)
.object(objectName)
.filename(localFilePath)
.build()
);
}
}
