Registration of the Service

Definition of basic metadata

Once the Service registration form is opened by clicking on + Register Service, it will be possible to enter the basic metadata:

• Name:* Service name
• Version:* Service version
• URL:* docker://<your-registry-docker-domain>:<port>/<image-path>:<tag>

as well as:

• Category
• Tags

both useful for categorizing the Services

Note

The service name must not start with a digit (0-9).

Documenting a Service

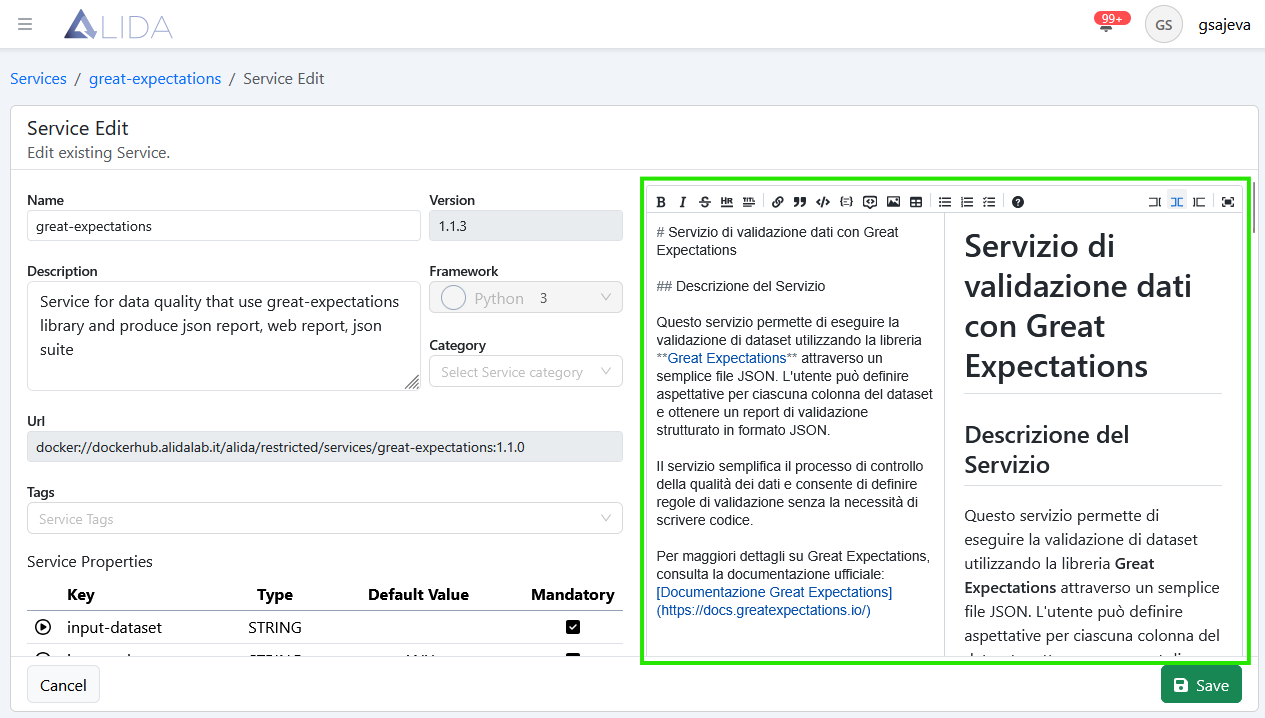

On the right is instead available an editor for entering the documentation of the Service in Markdown format.

markDown field in the JSON metamodel

When defining the Service via JSON metamodel (see Manual Definition of the Metamodel), the documentation must be inserted in the markDown field as a JSON object with the value key, not as a plain string:

"markDown": { "value": "# Service Title\n\nDescription..." }

Newlines must be escaped as \n. The text corresponds to the content of the project's documentation.md file.

The entered documentation will be accessible to the Data Scientist user of the Service through:

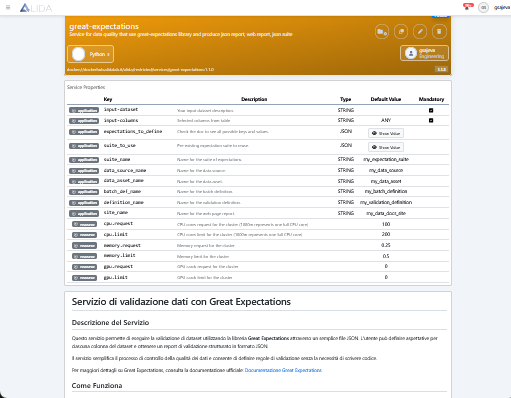

1. Service detail page

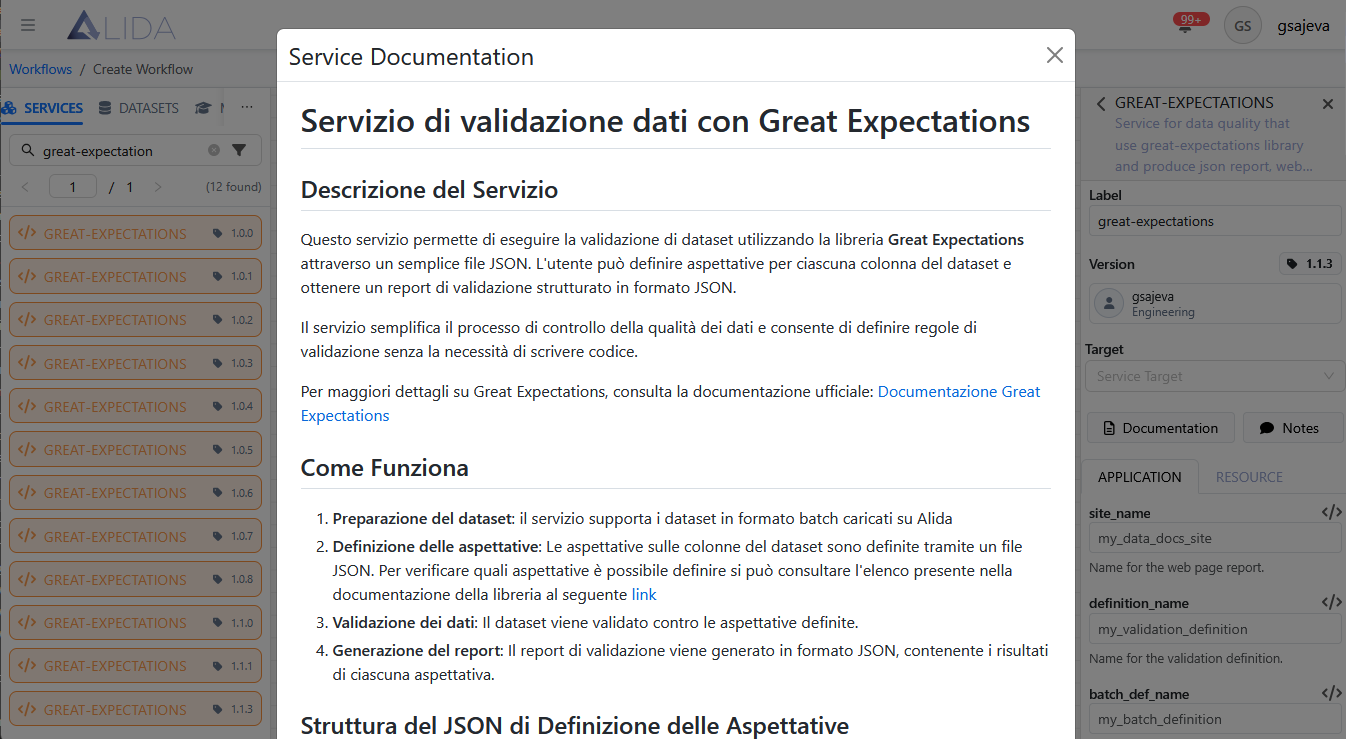

2. Workflow Designer

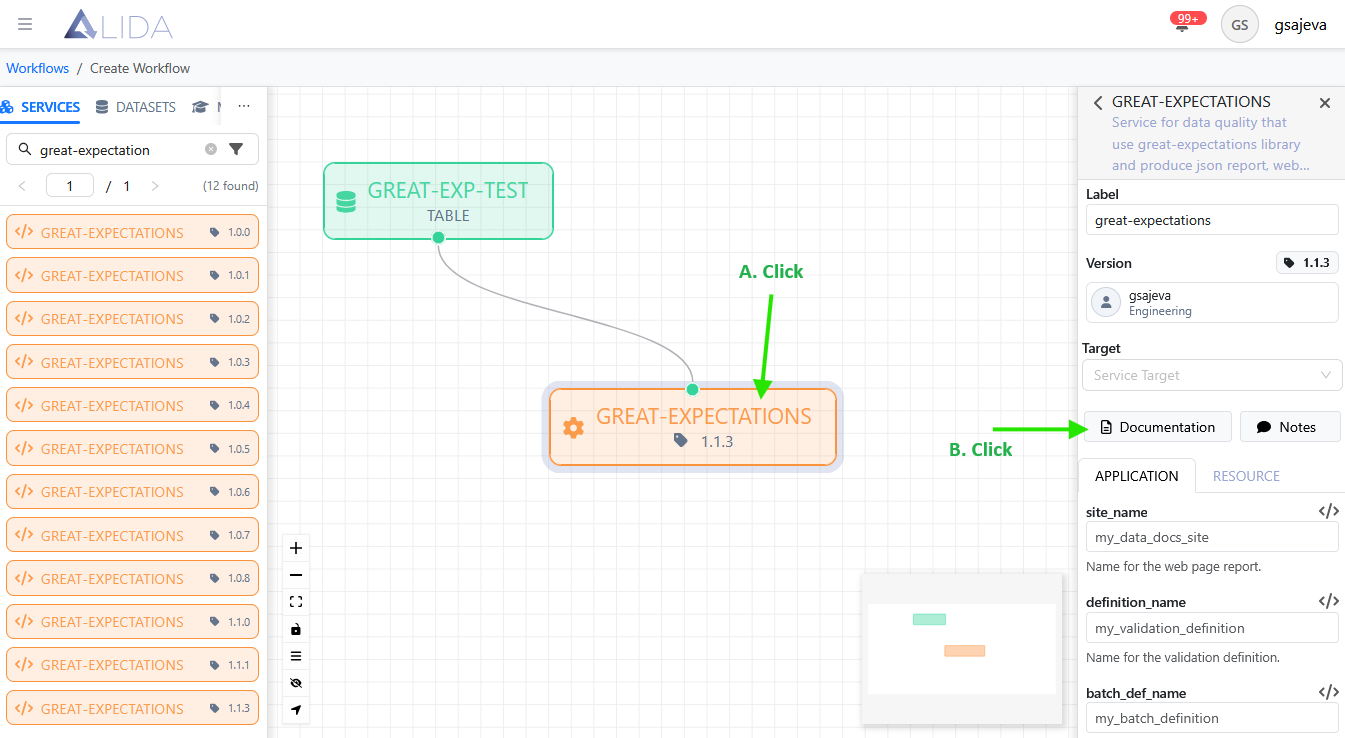

   Clicking on the Service of interest and then on Documentation





Definition of Service Properties

In the I/O Ports section, we have seen which command-line arguments to define at the core program level. Now, we will show how to communicate to ALIDA the presence of these arguments, so that the platform can valorize them and pass them correctly.

In particular, there must be a Service Property for each base command-line argument of the core program. You will not need to create those for the command-line arguments specific to the Datasource.

The Service Properties can be of four types:

• Application
• Static
• Resource

Application Type

To define I/O Ports and Configurable execution parameters, it is necessary to register Service Properties of type Application.

Those corresponding to the base arguments seen in the I/O Ports section must be registered.

Dataset, Model and Streaming Type Ports

For each of the base arguments of these port types, summarized here:

a Service Property must be created according to the following rules:

• Key: argument name (without '--') (e.g. --input-dataset => input-dataset)
• Description: optional
• Type: Application Property
• Mandatory: ticked
• Invisible: ticked
• Value Type: String
• Default Value: empty | ANY (in the case of --input-columns)
• Data Type: Input Data
• Streaming: unticked

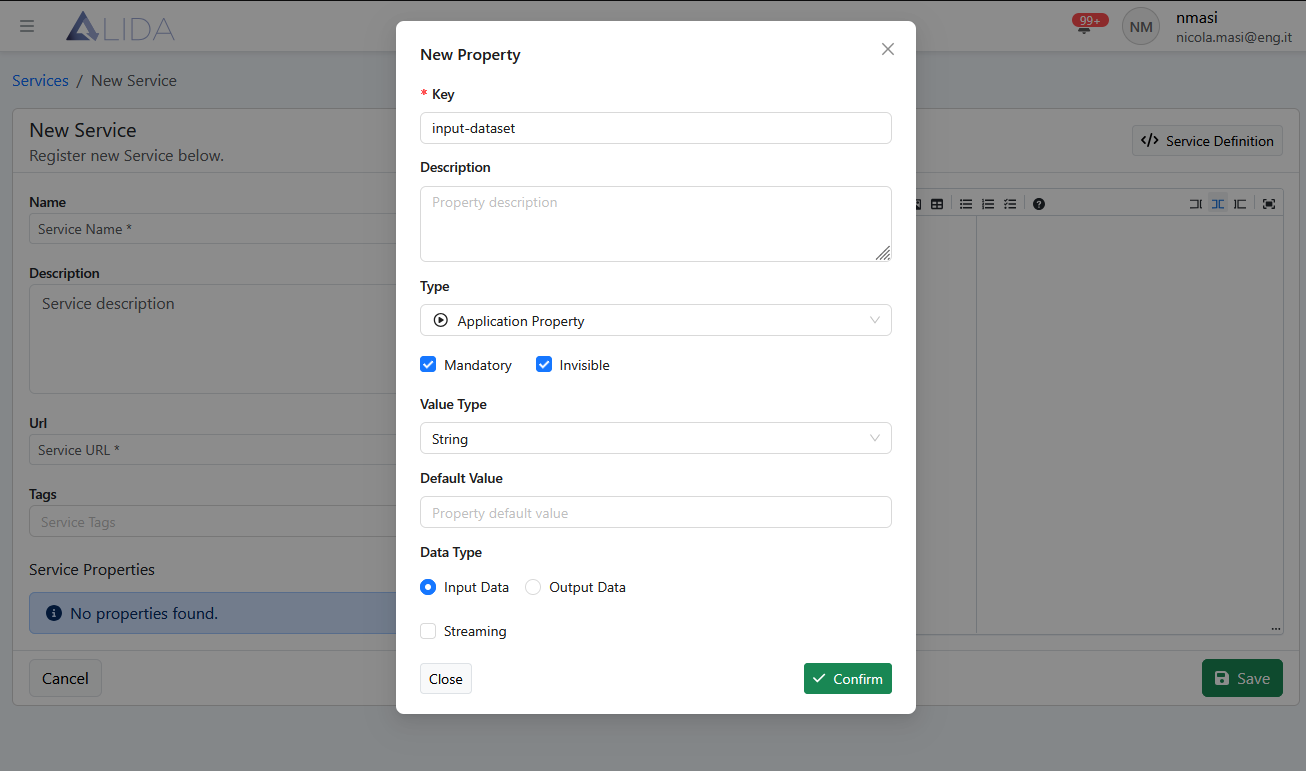

Example for --input-dataset

Note — Model type ports

For --input-model and --output-model ports, the Service Property must include the model field with the model format:

{
    "key": "output-model",
    "type": "application",
    "mandatory": true,
    "invisible": true,
    "valueType": "STRING",
    "defaultValue": null,
    "model": { "format": "sklearn" }
}

Allowed values for format include sklearn, mlflow, huggingface. Do not declare the id field in the property: it is automatically injected by ALIDA at runtime.

Generic I/O Type Port

For a Generic type port, the Service Property is defined as follows:

• Key: assets
• Description: optional
• Type: Application Property
• Mandatory: ticked
• Invisible: ticked
• Value Type: JSON
• Default Value:

  {
      "inputs":[
          {
              "name":"input-data",
              "path":"/inputs",
              "type":"dataset",
              "description":"my description"
          }
      ],
      "outputs":[
          {
              "name":"output-data",
              "path":"/outputs",
              "type":"dataset",
              "description":"my description"
          }
      ]
  }

• Data Type: Input Data
• Streaming: unticked

In this way, inside the container of the corresponding Service, two empty volumes accessible by the core program within the container will be mounted under /inputs and /outputs.

Note: While creating the workflow, the variable entry editor will change depending on the property type, description, and default values entered. Here is an example for two variables: message (JSON type) and period (string type):

REST API Type Port

The relative Service Property is as follows:

• Key: portsToExpose
• Description: optional
• Type: Application Property
• Mandatory: ticked
• Invisible: unticked
• Value Type: JSON
• Default Value:

  {
      "ports":[
          {
              "port":"<specify-port-exposed-by-core-program>",
              "name":"default",
              "http_model":"rest",
              "url":null
          }
      ]
  }

• Data Type: Input Data
• Streaming: unticked

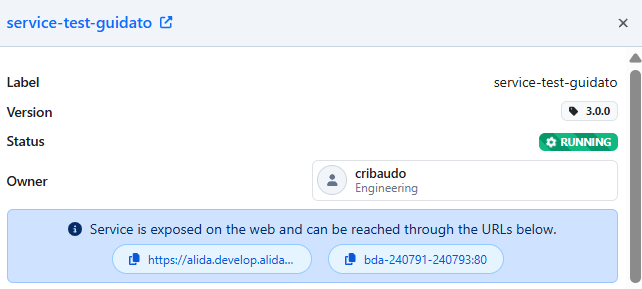

If this property is included, once the Service has been saved and loaded into a Workflow, it will allow us to expose it on the network and contact it through a URL provided by Alida at runtime:

Configurable execution parameter

For the definition of execution parameters configurable by the user through the Workflow Designer UI:

• Key: command line argument name (e.g. --my-param => my-param)
• Description: optional
• Type: Application Property
• Mandatory: ticked
• Invisible: unticked
• Value Type: all possible
• Default Value: optional
• Data Type: Input Data
• Streaming: unticked

Static Type

Static type Service Properties allow passing values to the Service as environment variables to the container and therefore to the core program.

• Key: environment variable name
• Description: optional
• Type: Static
• Mandatory: ticked | unticked
• Invisible: unticked
• Value Type: all possible
• Default Value: optional
• Data Type: Input Data
• Streaming: unticked

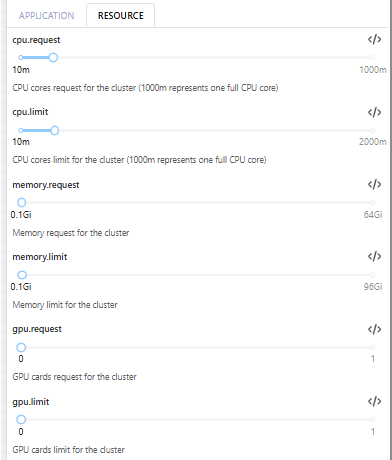

Resource Type

Resource type Service Properties define the runtime resource quotas requested for the Service (Kubernetes), and are all optional parameters. If the runtime cannot satisfy the request, the resources actually allocated will be lower.

Allowed metrics are:

• CPU: expressed in millicores (e.g. 100m, 1000m = 1 CPU).
• Memory: expressed in Mi or Gi.
• GPU: whole units (0, 1).
• AllowedRange: allowed range.

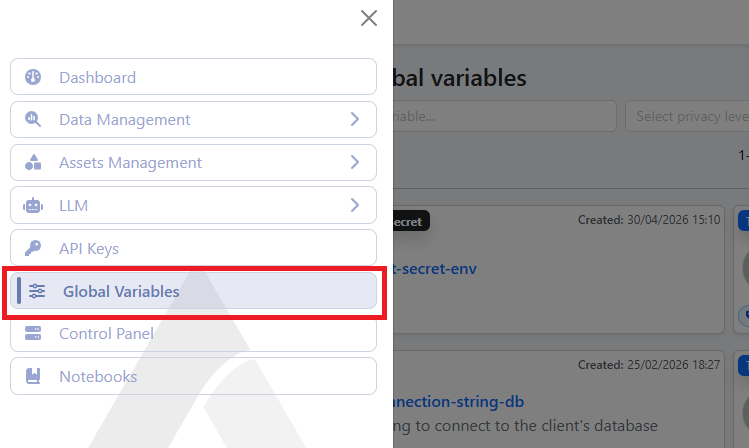

For both application and static, when entering the parameters required by the Service, it is possible to call and insert global variables available on the platform with the syntax . The available global variables are present in the "Global variables" section, accessible via the hamburger menu button in the top left:

Preset Values

For all three configurable properties of the service, it is possible to define preset values, predefined values that can be used when configuring the service within a workflow.

^{Preset values in service definition}

If preset values have been configured, during workflow creation the interface will allow users to select only those values defined by the person who registered the service.

^{Workflow editor}
